S6 ES Coyote II

by Rans Designs Inc.
4.0
5

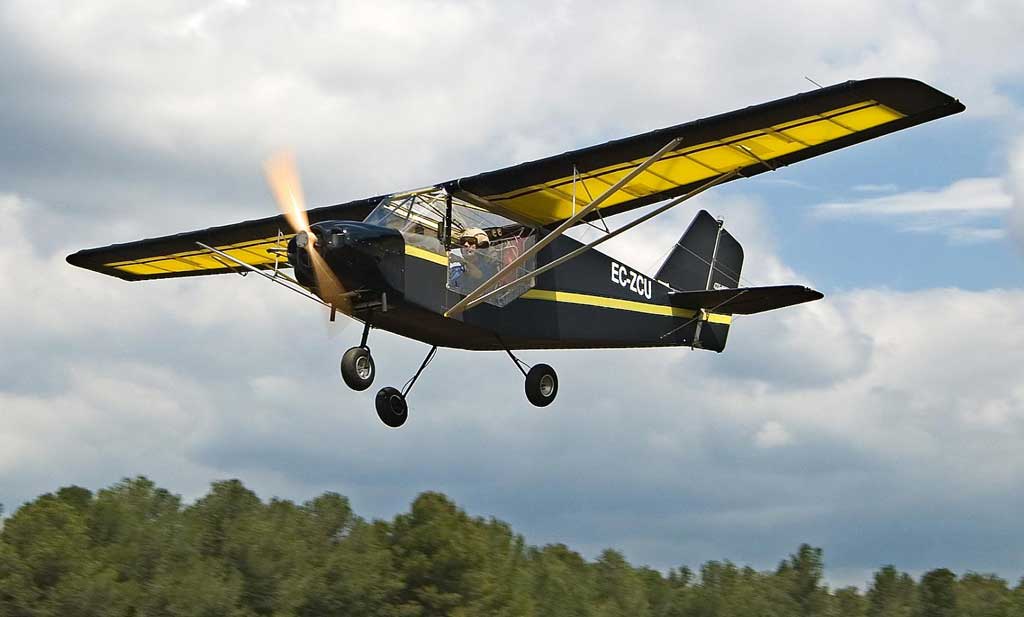

S6 ES Coyote II - Photo #1

The S-6ES went into production in April 1990. It is the second generation of the original S-6 design. Increased wing span through a fuselage re-design resulted in improved performance and appearance.

The ES denotes extended span. The design goals that the S-6 achieved represented a significant advance in quick-build kit planes. The S6ES series takes this goal even further. Using all prefinished parts and pre-sewn skins, the build time averages between 250 and 300 hours on the smaller engines.

Coyote II's can be built in the confines of an average garage using normal shop tools and skills.

Note: Take-off and Landing distance is not over 50ft obstacle

Text from: www.rans.com

Photo #2: Sergio Morchon

Specifications

Empty weight:
602 lbs (273 kg)
MTOW:
992 lbs (450 kg)
Stall speed:
31 kts (36 mph) (57 kph)
Cruise speed:
94 kts (108 mph) (174 kph)
VNE:
104 kts (120 mph) (193 kph)
Climb:
1400 ft/min (7.1 m/s)
Glide ratio:
9
Take-off distance:
180 ft (55 m)
Landing distance:
250 ft (76 m)
Engine:
Rotax 912S
Fuel consumption:
4 GPH (15.1 LPH)
For sale for: USD 14,700 / EUR 13,524

Watch 1 Video about the S6 ES Coyote II

PHOTOS

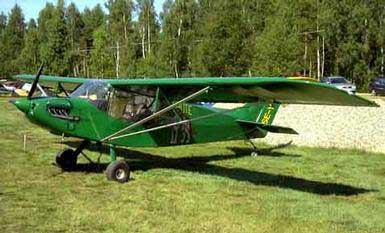

S6 ES Coyote II - Photo #2
