Excalibur Stretch

by Excalibur
3.2
47

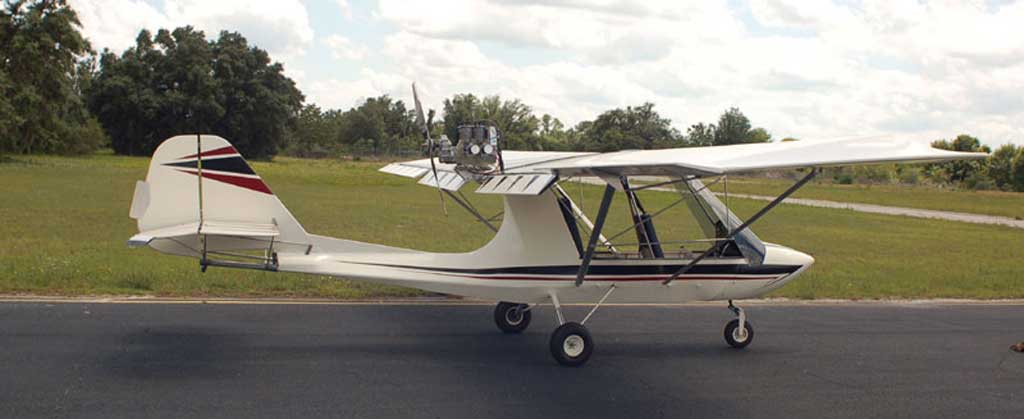

Excalibur Stretch - Photo #1

Options include: 60-hp HKS 700E air-cooled 4-stroke or 4O-hp Rotax 447 air- cooled 2-stroke engine, instruments (ASI, altimeter, tach, dual CHT dual EGT, panel-mounted compass, ignition switch), standard or amphibious floats, fiberglass wheel pants, BRS ballstic emergency parachute, doors, strobe lights and paint materials.

Construction is 6061-T6 and 2024-T3 aluminum tube airframe with chromoly steel weldments where needed, stainless steel pop rivets and AN or military spec hardware. Wings and surfaces are covered with Superflite fabric. No welding or machining is necessary and all the critical work is completed at the factory.

The kit for the Excalibur II features prebuilt tail surfaces, wings, ailerons end fuselage, and all the controls are already installed. Build time for the kit is estimated at 100 to 200 hours.

Source: excaliburaircraft.com

Specifications

Empty weight:
450 lbs (204 kg)
MTOW:
1000 lbs (454 kg)
Stall speed:
26 kts (30 mph) (48 kph)
Cruise speed:
70 kts (81 mph) (130 kph)
VNE:
87 kts (100 mph) (161 kph)
Climb:
1200 ft/min (6.1 m/s)
Glide ratio:
11
Take-off distance:
200 ft (61 m)
Landing distance:
300 ft (91 m)
Engine:
Rotax 503, 582, HKS 700 E

Watch 1 Video about the Excalibur Stretch

PHOTOS

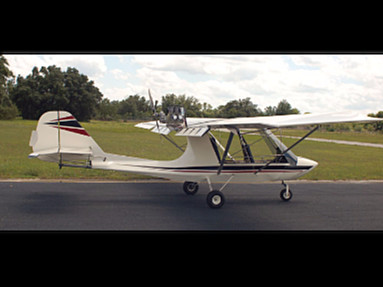

Excalibur Stretch - Photo #2
