Airo5 UL

by Airo Aviation
5
2
Airo5 UL - Photo #1

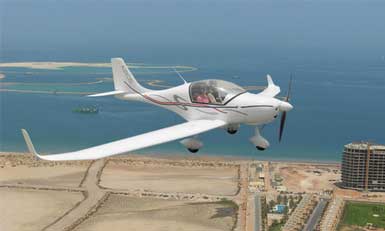

AIRO5 is a double-seat, single-engine, self-carrying low-wing aeroplane with crew members sitting next to each other. AIRO5 is an all-composite aircraft. The fuselage is made mainly of carbon fibre laminate with sandwich construction, while the flanges are of carbon rowing.

The wing is equipped with a lifting flap with a slot. Positions of electrically adjustable flaps are 20° for take-off and 45° for landing. The tail surfaces are of classic layout. The carriage is three-wheel with controlled front wheel and braked main wheels.

The main carriage legs consist of a laminate spring. Integrated fuel tanks (2 x 50 liters) are located in the wing leading edge.The plane may be equipped with a towing device for sail planes towing with maximal climbing weight of 650 kg. AIRO5 may be equipped with removable wing extensions.(optional).

Specifications

Empty weight:
644 lbs (292 kg)
MTOW:
1041 lbs (472 kg)
Stall speed:
35 kts (40 mph) (65 kph)
Cruise speed:
119 kts (137 mph) (220 kph)
VNE:
146 kts (168 mph) (270 kph)
Take-off distance:
492 ft (150 m)
Landing distance:
492 ft (150 m)
Engine:
100 hp Rotax 912/s engine
Fuel consumption:
4 GPH (15.1 LPH)
