Sirocco

by ACLA
3.1
20

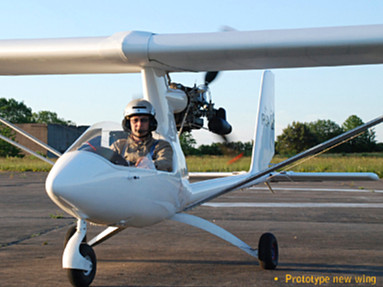

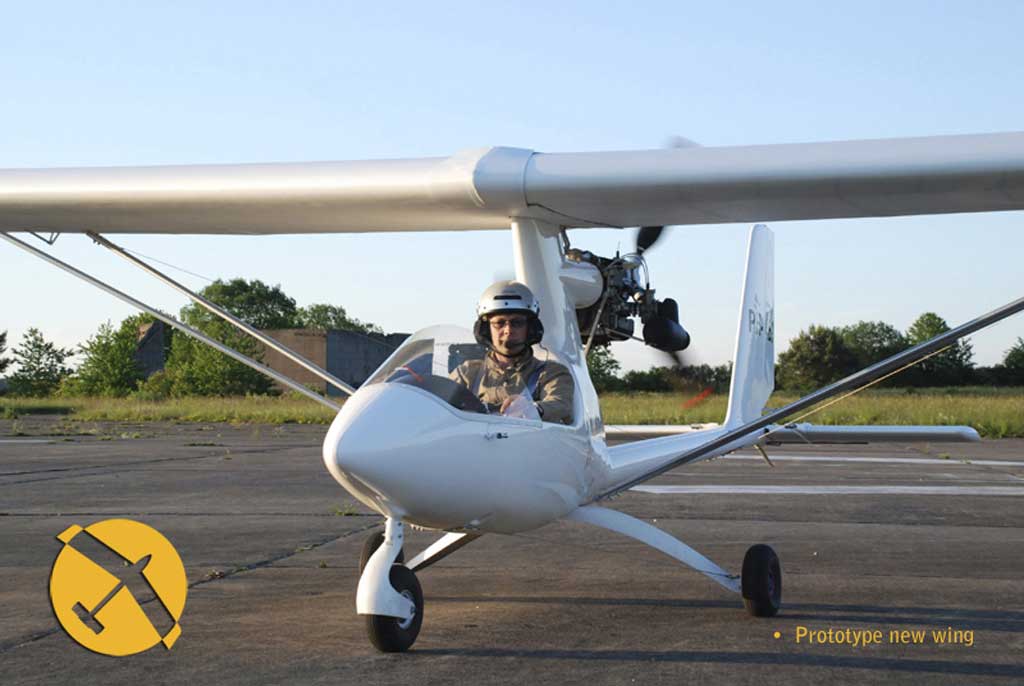

Sirocco - Photo #1

The new Sirocco NG!

New Wing;

- Composite construction
- Watercut composite ribs
- Ailerons
- Wing struts

Fuselage;

- Construction; glass with epoxy cured under vacuum. (optional Carbon/Kevlar epoxy)

for 115 kg SSDR and FAR103)

Landing gear;

- Directional control is maintained by differential brakes on the main wheels and a free casting nose wheel.

Stabilator;

- Redesigned stabilator with intergrated trim-tab.

Parachute;

Available option, and is mounted in the wing.

Engine;

33hp 2-cylinder 4-stroke

Briggs & Stratton lowest noise!!

5-7 ltr an hour.

Specifications;

Wngs span 9,00 meter

Wing area 12 m2

Length 5,8 m

Empty weight 115 - 125 kg

Gross weight 250 kg

Takeoff roll 30m

Standard engine B&S 33hp

Fuel tank 20 ltr (optional 40)

Cruise speed 55 mph

Stall speed 35 mph

Vne 75 mph

Kit also avialable, visit www.acla.eu

Specifications

Empty weight:
254 lbs (115 kg)
MTOW:
551 lbs (250 kg)
Stall speed:
30 kts (35 mph) (56 kph)
Cruise speed:
49 kts (56 mph) (91 kph)
VNE:
65 kts (75 mph) (120 kph)
Climb:
500 ft/min (2.5 m/s)
Glide ratio:
9
Take-off distance:
164 ft (50 m)
Landing distance:
197 ft (60 m)
Engine:
B&S convertion
Fuel consumption:
1 GPH (3.8 LPH)
For sale for: USD 29,590 / EUR 25,151

PHOTOS

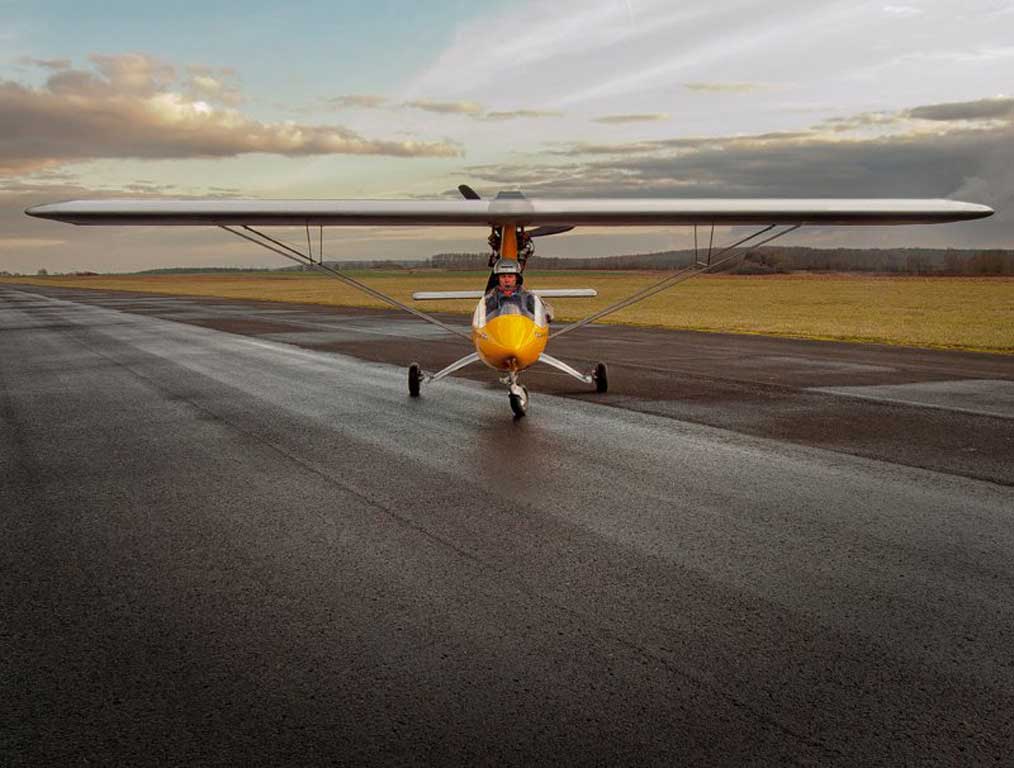

Sirocco - Photo #2
