Magic GS-700

by IBIS Aircraft S.A.
3.1
12

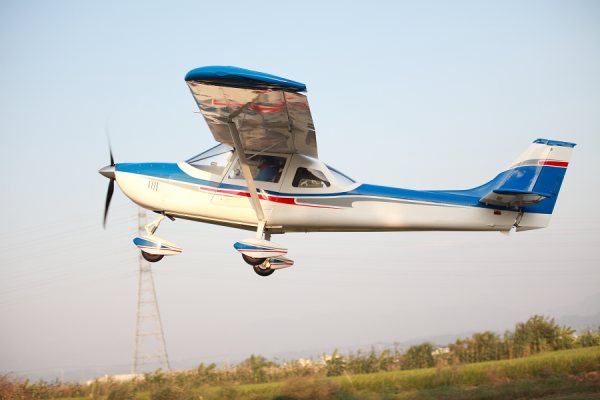

Magic GS-700 - Photo #1

The Ibis GS-700 Magic is a Colombian ultralight and light-sport aircraft, designed and produced by Ibis Aircraft of Cali, introduced in 2003. The aircraft is supplied as a kit for amateur construction or as a complete ready-to-fly-aircraft.

The Magic was designed to comply with the Fédération Aéronautique Internationale microlight rules and US light-sport aircraft rules, with different models for each category. It features a strut-braced high-wing, a two-seats-in-side-by-side configuration enclosed cockpit, fixed tricycle landing gear and a single engine in tractor configuration. The Magic strongly resembles the Cessna 150.

The aircraft is made from sheet 6061-T6 aluminum. Its 8.85 m (29.0 ft) span wing has an area of 12.48 m2 (134.3 sq ft) and mounts flaps. The standard engine available is the 100 hp (75 kW) Rotax 912ULS four-stroke powerplant. The Magic was designed to use rough, unimproved airstrips.

Source: wikipedia

Specifications

Empty weight:
705 lbs (320 kg)
MTOW:
1254 lbs (569 kg)
Stall speed:
42 kts (48 mph) (78 kph)
Cruise speed:
100 kts (115 mph) (185 kph)
VNE:
113 kts (130 mph) (209 kph)
Climb:
1000 ft/min (5.1 m/s)
Take-off distance:
262 ft (80 m)
Landing distance:
328 ft (100 m)
Engine:
Rotax ENGINE 100 HP
Fuel consumption:
4.6 GPH (15.1 LPH)

Watch 1 Video about the Magic GS-700

PHOTOS

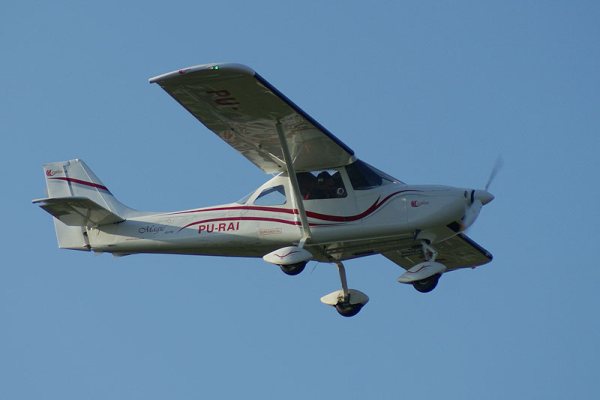

Magic GS-700 - Photo #2
Magic GS-700 - Photo #3
