DAR-21

by Aeroplanes DAR
5.0
3

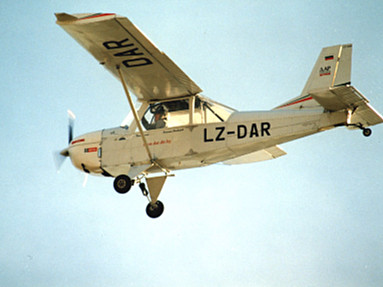

DAR-21 - Photo #1

The DAR-21 by Aeroplanes DAR, is a two-seat aircraft, engine ranging from 60 to 120 HP. It has a fully enclosed cabin with tandem seats. The aircraft is flown from the front or back seat. There is only one door on the right side giving access both to seats and cargo sector.

All necessary instrumentation is mounted on the front panel, from where the aircraft is flown when flying solo.

The building materials of the DAR-21 airplane are aluminum alloys 1050, 2024, 3105 and 6061. The wing is rectangular with a single spar construction. The fuselage is made of rectangular tubing and steel struts with stressed aluminum skin. Cowling is made of composites. It has a steerable tail wheel. The fuselage holds a 30 liter fuel tank, but wings can be equipped with wing tanks.

Pricing:

EXW SOF (Ex-work Sofia, Bulgaria)

Complete airplane:

DAR-21 with Rotax 912 31500EUR

DAR-21 with Jabiru 2200 31450EUR

Kit Pricing EWR SOF:

DAR-21 kit without engine, prop and instruments 20700EUR

For more information regarding the DAR-21, please visit

Specifications

Empty weight:
507 lbs (230 kg)
MTOW:
992 lbs (450 kg)
Stall speed:
32 kts (37 mph) (59 kph)
Cruise speed:
86 kts (99 mph) (159 kph)
VNE:
113 kts (130 mph) (209 kph)
Climb:
787 ft/min (4 m/s)
Glide ratio:
10
Take-off distance:
656 ft (200 m)
Landing distance:
492 ft (150 m)
Engine:
Rotax 912 or Jabiru 2200
Fuel consumption:
3 GPH (11.4 LPH)

Watch 1 Video about the DAR-21

PHOTOS

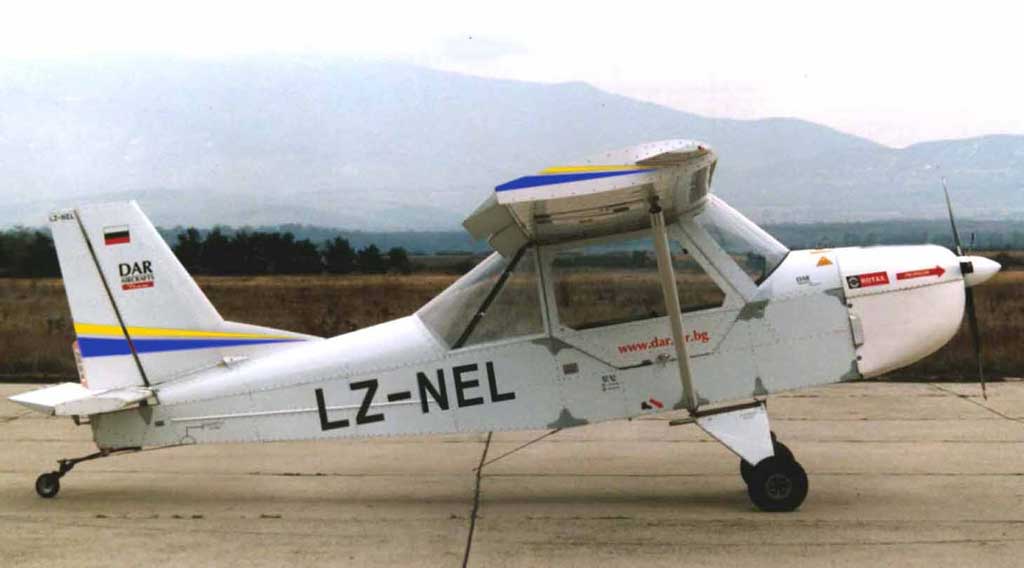

DAR-21 - Photo #2

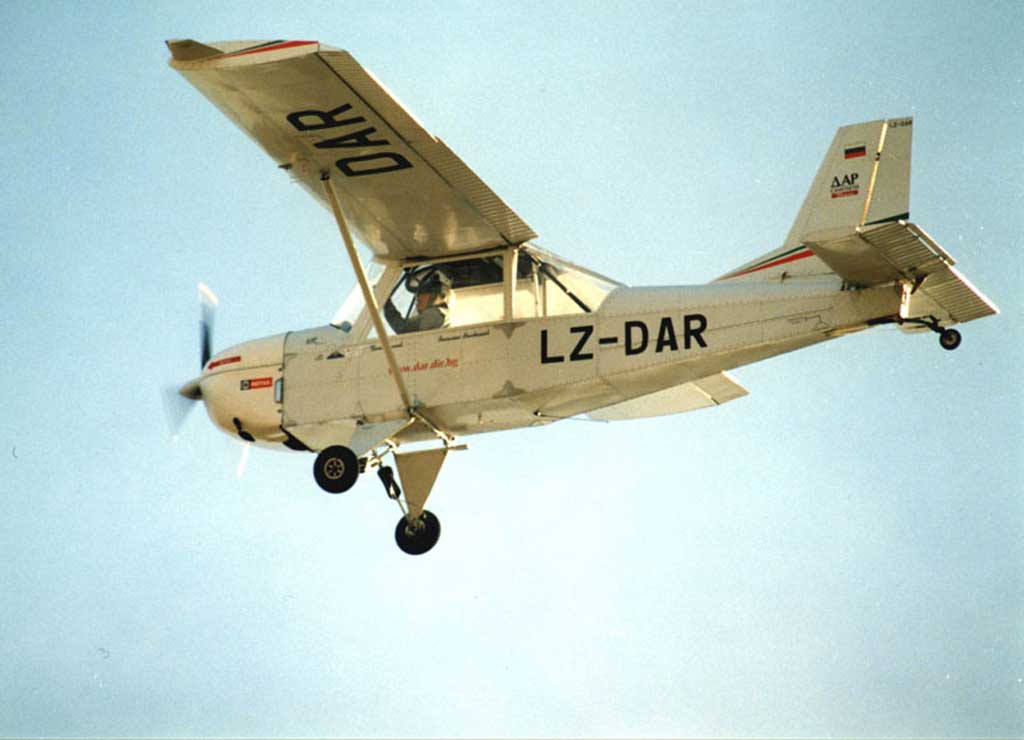

DAR-21 - Photo #3
