Cozy Mark IV by Aircraft Spruce

by Aircraft Spruce & Specialty Co.
3.5
232

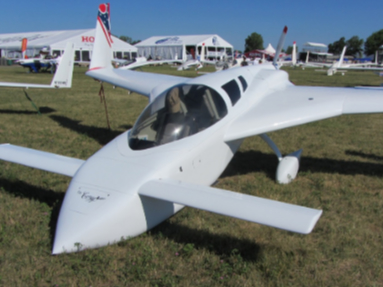

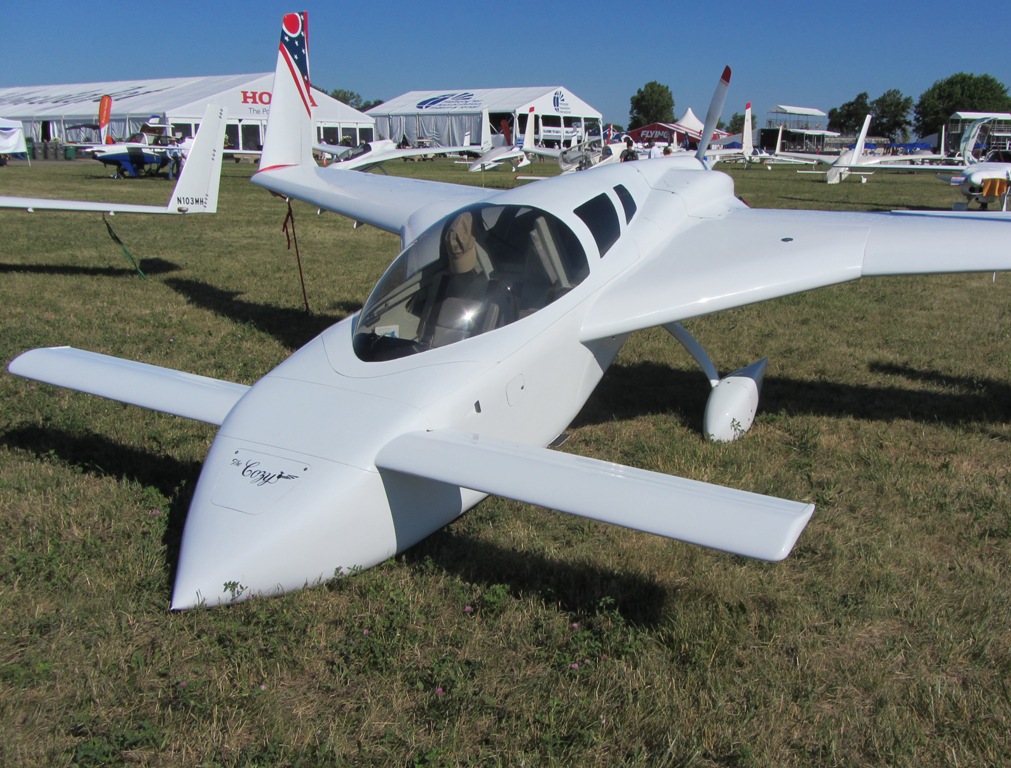

Cozy Mark IV by Aircraft Spruce - Photo #1

The Cozy MK IV is a high-performance, 4-seat, homebuilt / experimental canard aircraft from Aircraft Spruce. It has a range of about 1,000 miles and a top speed of 200 mph.

The Cozy MKIV features dual control and two-axis trim. Built with composite ensures a very strong construction, resistant to corrosion and fatigue. Composite construction also offers great protection to the occupants.

Common questions about the MKIV

How long does it take to build a Cozy?
Building a Cozy from plans takes for a good worker approximately 2,500 hours.

How much does it cost?
At current prices about $18,000 to build the airframe. This includes purchasing some pre-fab parts which would be difficult for an unskilled builder to make himself, such as cowlings, canopy, landing gear struts, engine mount, manual or electric nose-gear retract mechanism, and other parts which require machining or welding. It does not include the cost of an engine, or expensive instruments and avionics.

What engines are approved?
The Cozy Mark IV was designed around the 180 hp Lycoming engine. Lycoming engines from 160 hp to 200 hp are suitable. We have evaluated the 6-cylinder 200 hp Franklin engine.

Specifications

Empty weight:
1050 lbs (476 kg)
MTOW:
2050 lbs (930 kg)
Stall speed:
60 kts (69 mph) (111 kph)
Cruise speed:
191 kts (220 mph) (354 kph)
VNE:
195 kts (224 mph) (361 kph)
Climb:
2000 ft/min (10.2 m/s)
Take-off distance:
1200 ft (366 m)
Landing distance:
1000 ft (305 m)
Engine:
Lycoming 160, 180, or 200
For sale for: USD 36,000 / EUR 33,120

Watch 18 Videos about the Cozy Mark IV by Aircraft Spruce

PHOTOS

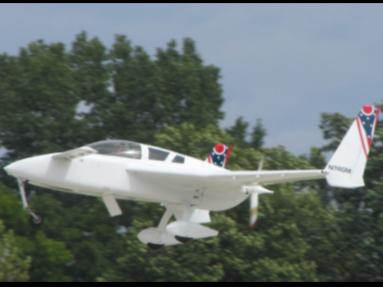

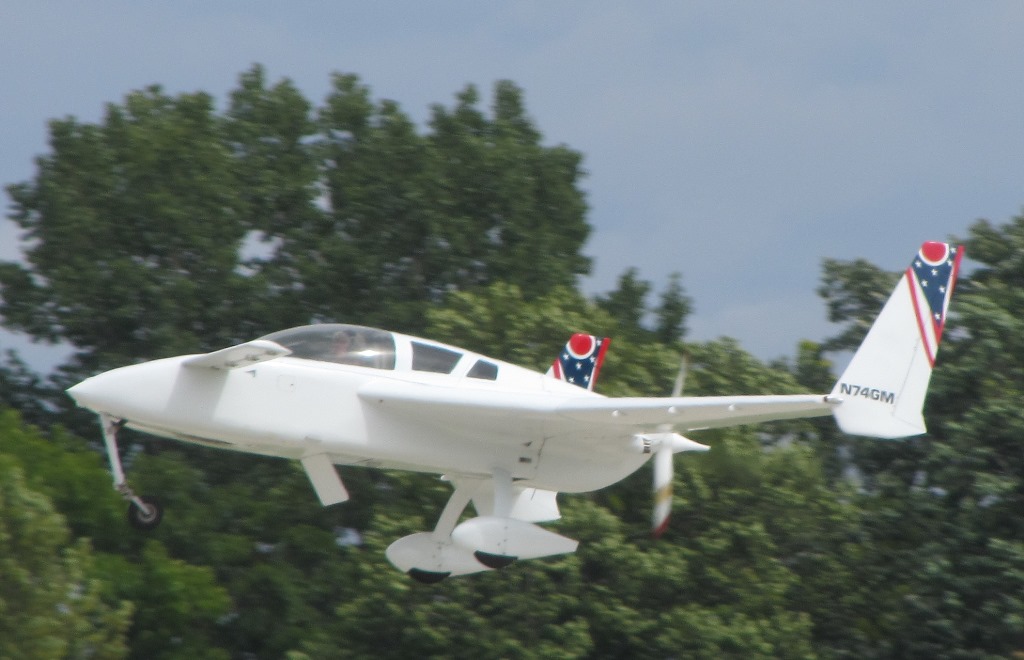

Cozy Mark IV by Aircraft Spruce - Photo #2
Cozy Mark IV by Aircraft Spruce - Photo #3
