Vulcan C 100 UL

by Corivi Aviation
4.5
5

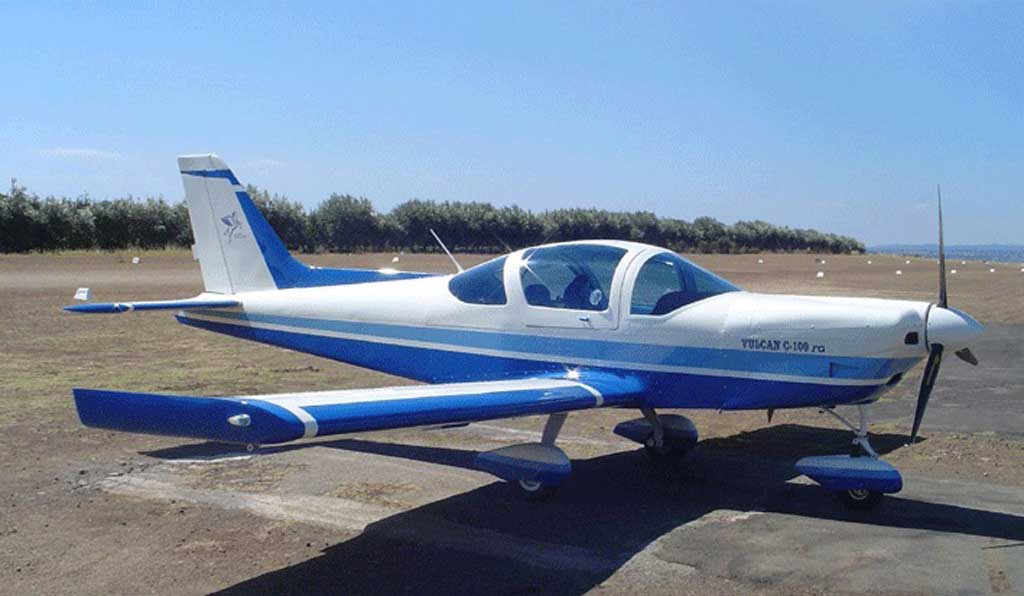

Vulcan C 100 UL - Photo #1

Very confortable airplane to travel fast and safety everywere.

Dimensions and Characteristics:

Number of Seats: 2 Horsepower: 80-150 HP Length: 21.45 Ft. (6,50m) Height: 7.59 Ft (2,30m) Cross Wheel Distance: 8.25 feet (2.50 m) Electric Actuated Flaps Retractile Landing Gear – Pneumatic Actuated Stabilizer Trim – Electric Actuated Engine: ROTAX 912 ULS Propeller: Carbon Composite Three Blade – On Round Pitch Variable Empty Weight: 621 Lbs. (282 Kg) Fuel Capacity: 24.96 US Gallon (96 litres)

Materials:

Main Parts in 2024 Avional T3 Alloy Landing Gear and Engine Mount in 4130 Steel Bolt in 8.8 Steel Engine Cover and Cockpit Fairing in Fiberglas Performances: Max Horizontal Speed: 140 Kts (260 Km/h) Cruise Speed (75% setting): 124 Kts (230 Km/h) Top Speed: 161 MPH Stall Speed (Flaps down): 34 Kts (62 Km/h) Climb Rate: 1200 Ft/min (6 m/sec) Take Off Run: 726 Ft (220 m)(1617 Ft with 50 Ft Obstacle) Landing Run: 462 Ft (140 m) Max Range: 653 nm (1210 Km)5h30’ with 30’ Reserve) Max Efficiency: 12

Source: aircraftspruce.com

Specifications

Empty weight:
628 lbs (285 kg)
MTOW:
992 lbs (450 kg)
Stall speed:
35 kts (40 mph) (65 kph)
Cruise speed:
135 kts (155 mph) (250 kph)
VNE:
167 kts (192 mph) (309 kph)
Climb:
1500 ft/min (7.6 m/s)
Take-off distance:
820 ft (250 m)
Landing distance:
656 ft (200 m)
Engine:
Rotax 100 UL
Fuel consumption:
4 GPH (15.1 LPH)

PHOTOS

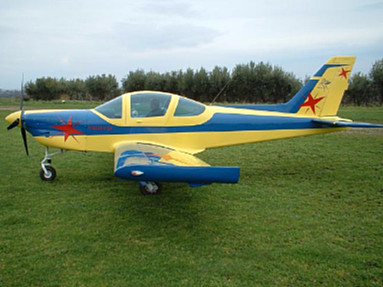

Vulcan C 100 UL - Photo #2

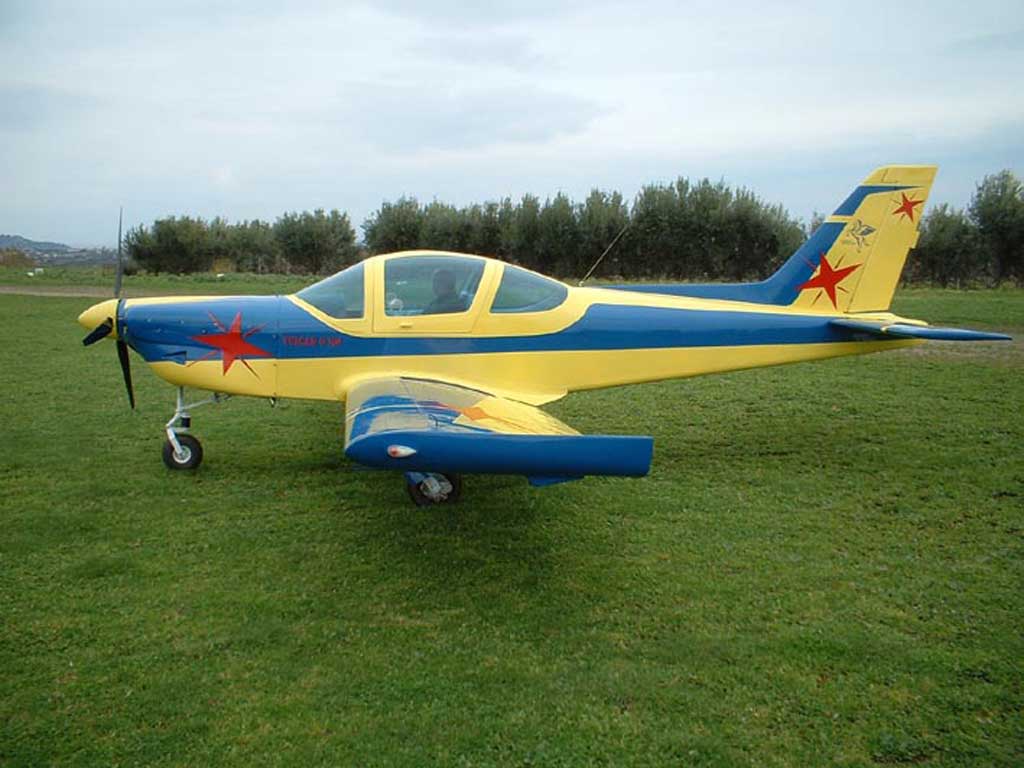

Vulcan C 100 UL - Photo #3
