Tornado II

by Titan Aircraft Company
3.9
14

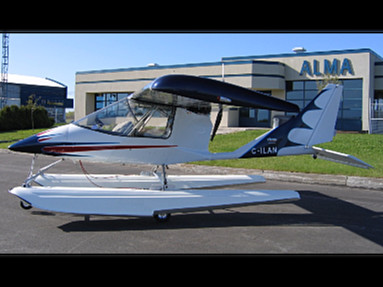

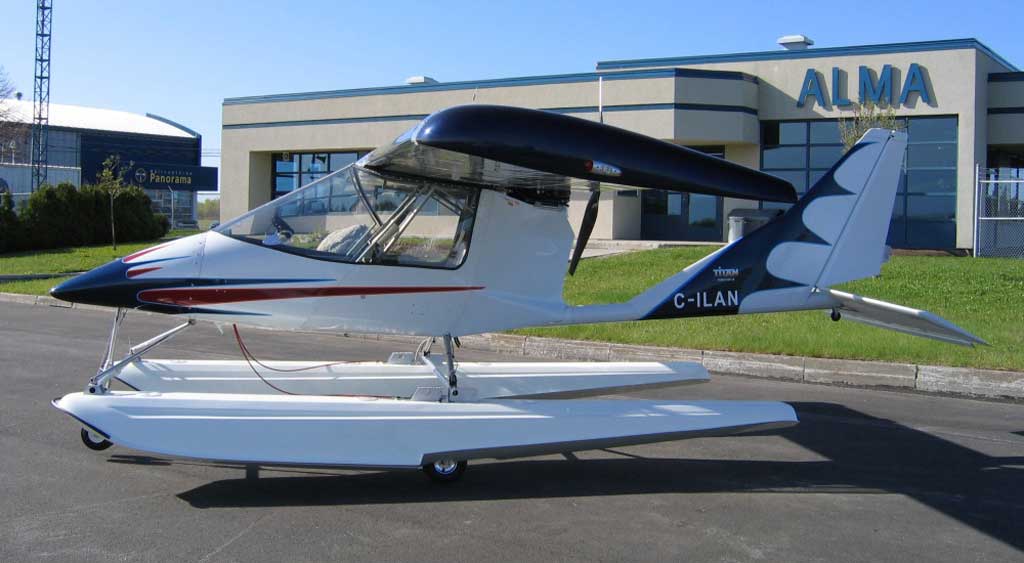

Tornado II - Photo #1

The Titan Tornado 2 incorporates material and systems not commonly found in aircraft comparably priced. This, combined with Titan Aircraft?s renowned reputation for high quality product, superior aircraft performance and outstanding customer support, is sure to provide the pilot and kit builder a very pleasurable experience, and a fantastic resale value. The kit has an estimated build time of 150 - 300 hours and includes all required material, components and fasteners. The kit does not however include the engine, propeller, and instruments because of different customer preferences. This aircraft combines friendly low speed handling characteristics with agility and high performance. The Titan Tornado 2 is designed to a +6g / -4g load limit capability at 1000 pounds gross weight. When operating with the rotax 582 engine the cruise speed is in excess of 110 mph. The stall speed in landing configuration flying solo is 35 mph. We invite inquiries.

Source: titanaircraft.com

Note: Take-off and landing distance not over 50ft obstacle

Specifications

Empty weight:
440 lbs (200 kg)
MTOW:
1000 lbs (454 kg)
Stall speed:
30 kts (35 mph) (56 kph)
Cruise speed:
96 kts (110 mph) (178 kph)
VNE:
130 kts (150 mph) (241 kph)
Climb:
1600 ft/min (8.1 m/s)
Take-off distance:
300 ft (91 m)
Landing distance:
250 ft (76 m)
Engine:
Rotax 582
Fuel consumption:
4 GPH (15.1 LPH)

PHOTOS

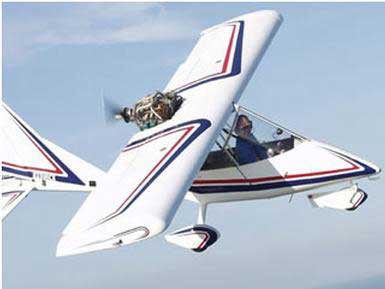

Tornado II - Photo #2

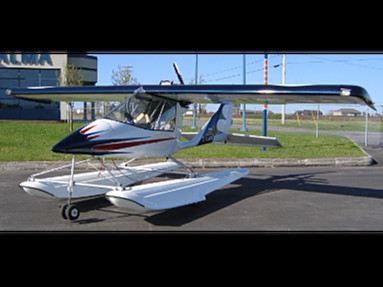

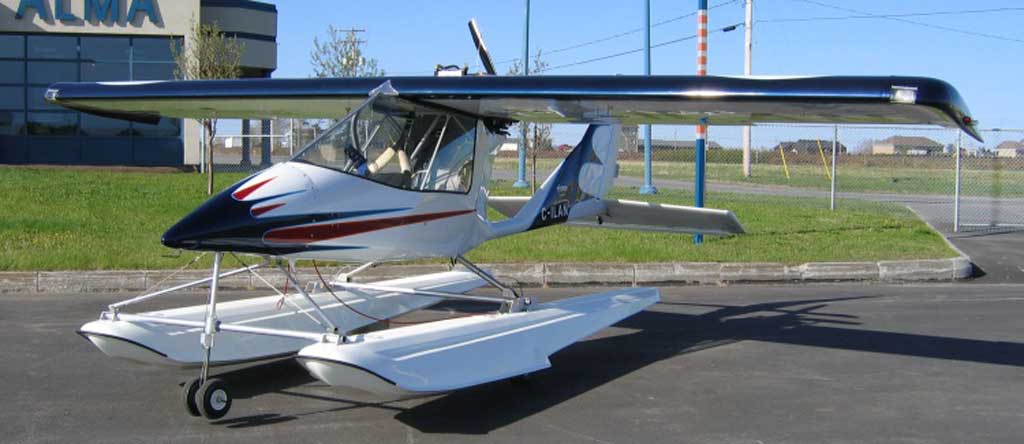

Tornado II - Photo #3
