T-10 Frigate

by TMM-Avia
4
1

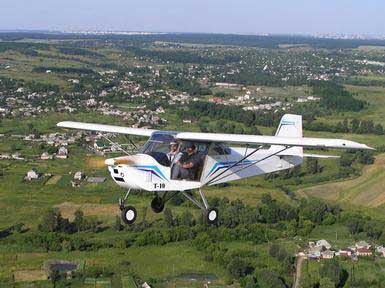

T-10 Frigate - Photo #1

T-10 is a very light multipurpose aircraft, intended for different aviation tasks: pilot training, crop spraying, aerial patroing and monitoring.

The airplane's fugelage frame work has truss structure, made of stainless steel.Wingtips(double spar,all wooden) and horizontal empennage are foldable along the fuselage,wchich markedly facilitates the airplane's assembly, disassembly, transportation and storage.

T-10 tricycle non-retractable landing gear, enables it to operate from ground, grass and paved runways.

The T-10's design makes all provisions for the crew salvation in emergency situations, flight safety at low altitudes, maintainability and repairability.As additional option it can be equipped with a Cobra recovery system. We propose the T-10 Frigate as a ready-to-fly airplane or as a kit (21 600 euro)!

Photo #2: Sky Moto

Specifications

Empty weight:
694 lbs (315 kg)
MTOW:
1213 lbs (550 kg)
Stall speed:
33 kts (38 mph) (61 kph)
Cruise speed:
81 kts (93 mph) (150 kph)
VNE:
103 kts (119 mph) (191 kph)
Climb:
1220 ft/min (6.2 m/s)
Glide ratio:
11
Take-off distance:
361 ft (110 m)
Landing distance:
230 ft (70 m)
Engine:
Rotax 912 ULS (100hp)
Fuel consumption:
4 GPH (15.1 LPH)
For sale for: USD 54,676 / EUR 46,474

PHOTOS

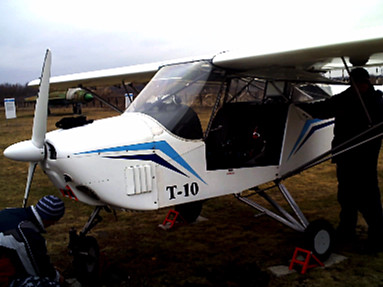

T-10 Frigate - Photo #2
