Ximango, Super AMT-200

by Grupo Aeromot
3.8
16

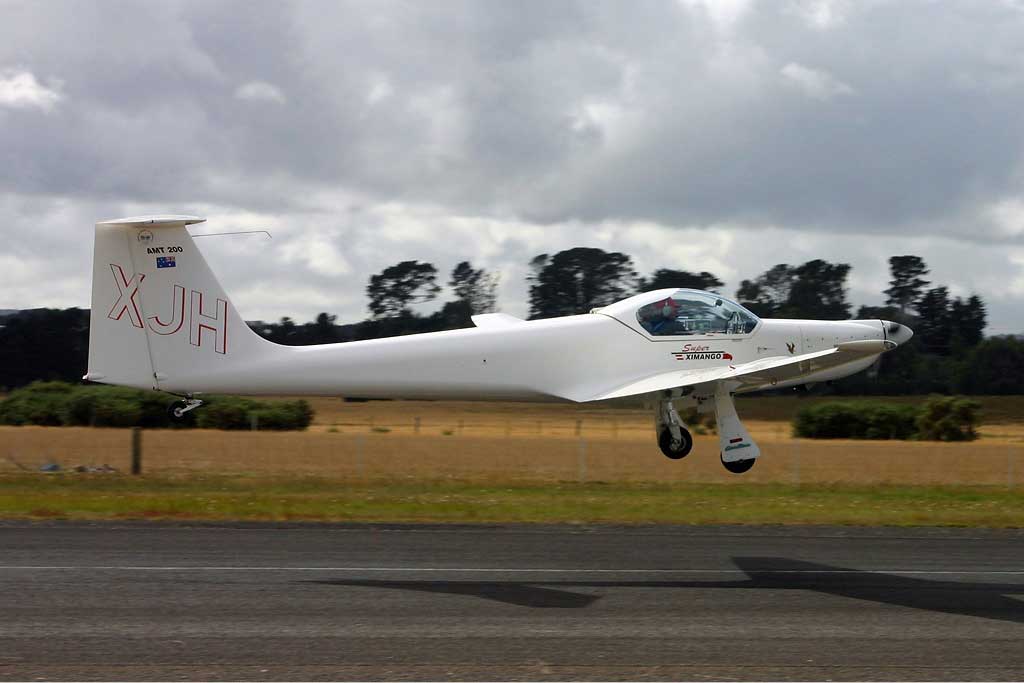

Ximango, Super AMT-200 - Photo #1

The Super Ximango is a low-wing, side-by-side composite motorglider powered by a 80hp Rotax 912A. The Ximango is also known as the TG-14 in the U.S. Airforce Academy.

SPECIFICATIONS APPLICABLE TO ALL XIMANGO MODELS

CERTIFICATION - JAR 22
"G" LIMITS - + 5.3/ -2.65
DUAL SEAT SIDE BY SIDE
FIBER GLASS AND CARBON FIBER CONSTRUCTION
FOLDABLE LOW WINGS
"T" TAIL
RETRACTABLE LANDING GEAR


TECHNICAL DATA

Engine - Rotax 912 A2 (81 HP)
Propeller, 3 position Hoffmann HO - V62R - 1/170 FA
Fuel tank, l - gal 90 - 24

DIMENSIONS, m - ft

Wing span,unfolded wings: 17.47 - 57 ft 4in
Wing span, folded wings: 10.15 - 33 ft 4in
Length 8.05 - 26 ft 5in
Height (tail) 1.93 - 6 ft 4in
Wing area, m² - sqft 18.70 - 201.3
L/D Maximum@107Km/h-67mph 31:1

WEIGHTS & CAPACITY, Kg - lb

Empty (typical) 620 - 1.370
MTOW 850 - 1.875
Baggage 10 - 22

TAKE OFF DISTANCE, m - ft

Ground roll 225 - 740
50 ft obstacle 323 - 1060

LANDING DISTANCE, m - ft

Ground roll 140 - 460
50 ft obstacle 290 - 950

SPEEDS, Km/h - mph

Stall 78 - 48
High speed cruise 210 - 130
Cruise speed 190 - 118
Minimum speed 90 - 56
VNE 245 - 152
Minimum sink Rate at 97km/h-60mph 0.93m/s - 183 fpm
Rate of climb at 110 km/h - 68mph 2.6m/s - 512 fpm

RANGE, km - sm

Best economy 1400 - 870
Best power 1100 - 685

ENDURANCE, hours

Best economy 12
Best power 6

CEILING, m - ft

Service 5.000 - 16.400
Operational 6.000 - 19.700

Source: ximango.com.br
Photo: By Phil Vabre

Specifications

Empty weight:
1367 lbs (620 kg)
MTOW:
1874 lbs (850 kg)
Stall speed:
42 kts (48 mph) (78 kph)
Cruise speed:
108 kts (124 mph) (200 kph)
VNE:
132 kts (152 mph) (244 kph)
Climb:
550 ft/min (2.8 m/s)
Glide ratio:
31
Take-off distance:
1060 ft (323 m)
Landing distance:
951 ft (290 m)
Engine:
Rotax 912, 912 S or 914

PHOTOS

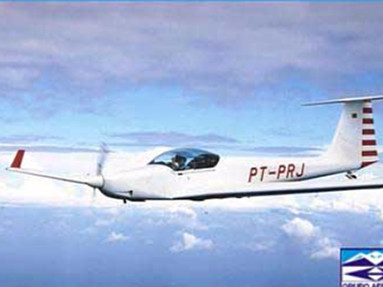

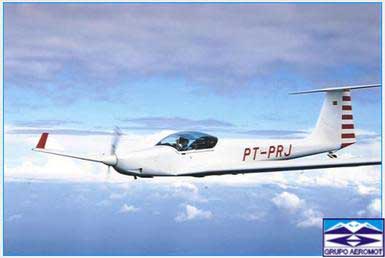

Ximango, Super AMT-200 - Photo #2
