Stylus X3/X2

by AVAMA Ltd. Slovakia
5.0
2

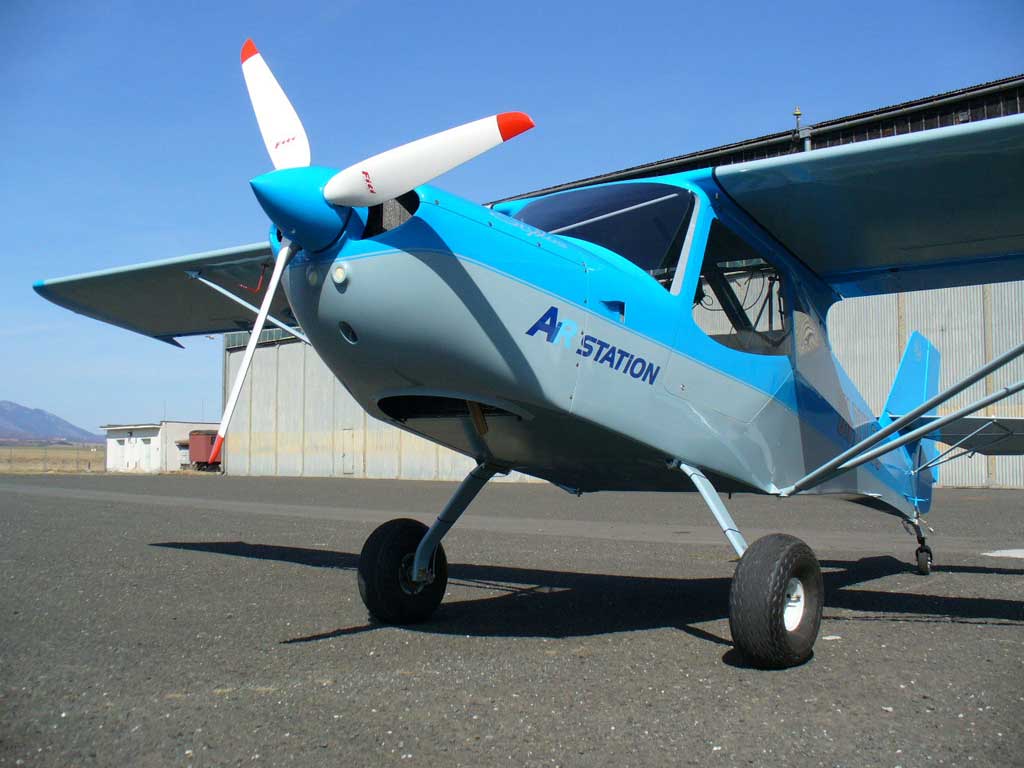

Stylus X3/X2 - Photo #1

The Stylus X3/X2 (tail-wheel/nose-wheel) aircraft is constructed as a strut shoulder-wing monoplane with two wing struts, two-spur wing with separated lift flaps and winglets. The fuselage is of truss construction made of steel pipes. Tail areas are made like a tube plane truss construction. Construction and all the steel components are welded through the TIG method in argon protecting atmosphere. Stylus X2 (back wheel) chassis is of a classic type with back bogie-wheel, Stylus X3 (front wheel) chassis is of a 3-bogie-wheel type with controlled front undercarriage leg.

Specifications

Empty weight:
650 lbs (295 kg)
MTOW:
1234 lbs (560 kg)
Stall speed:
33 kts (38 mph) (61 kph)
Cruise speed:
85 kts (98 mph) (157 kph)
VNE:
106 kts (122 mph) (196 kph)
Climb:
1100 ft/min (5.6 m/s)
Take-off distance:
800 ft (244 m)
Landing distance:
900 ft (274 m)
Engine:
Rotax 912ULS
Fuel consumption:
3.2 GPH (11.4 LPH)
For sale for: USD 33,500 / EUR 30,820

Watch 1 Video about the Stylus X3/X2

PHOTOS

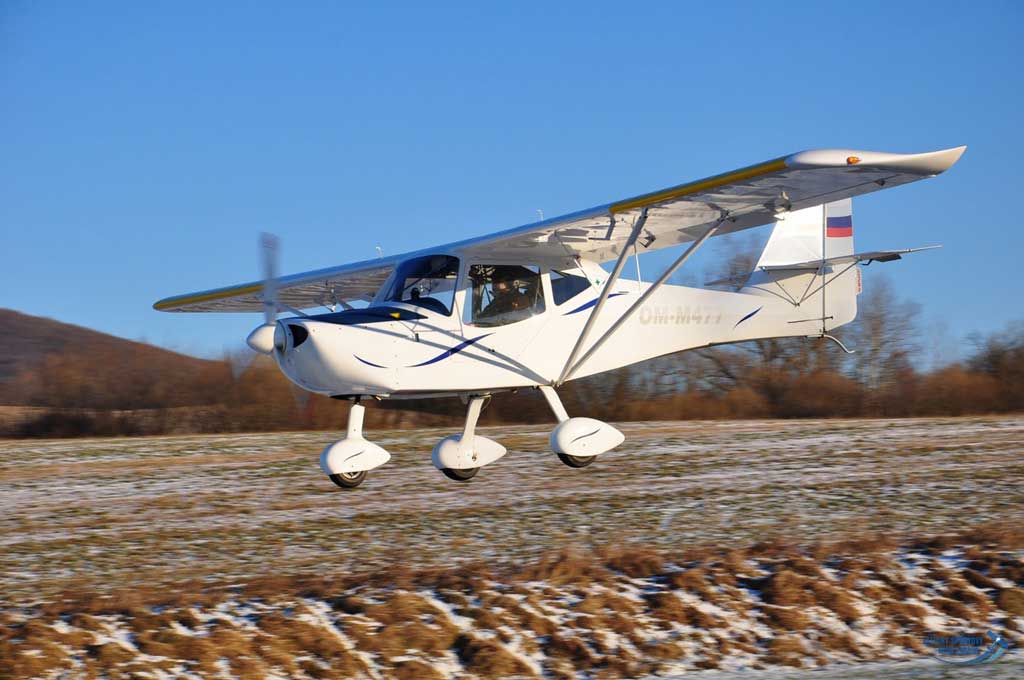

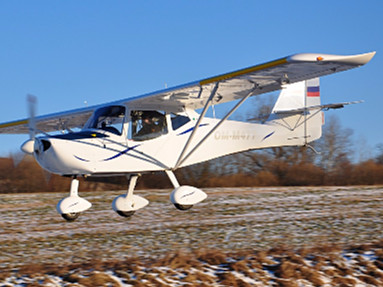

Stylus X3/X2 - Photo #2
