Sonex Aircraft

by Sonex Ltd.
5
3

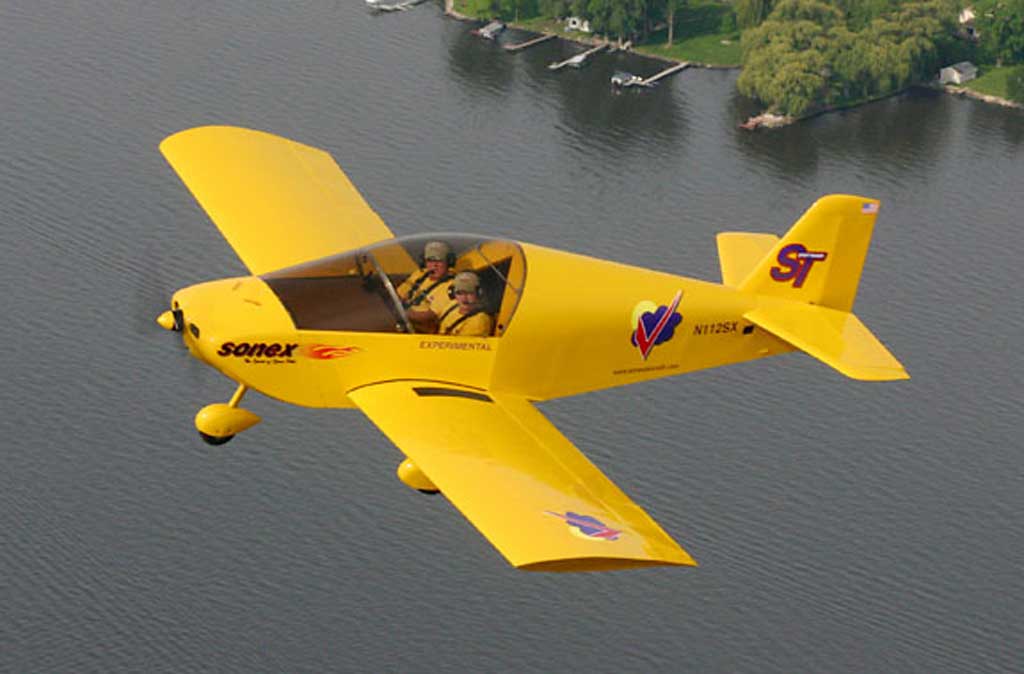

Sonex Aircraft - Photo #1

The SONEX is an all metal two place monoplane designed to meet the needs of the European and Domestic sport aircraft markets. The SONEX can be fitted with various light weight engines between 80 to 120 hp.

The SONEX has a very clean and aerodynamic design that gives it excellent performance. Cruising at a 130 mph at sea level is quite good!

Options are tailwheel, tricycle, center or dual sticks.

The SONEX can be flown in the US as a LSA (light sport aircraft).

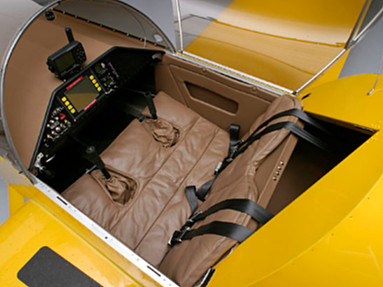

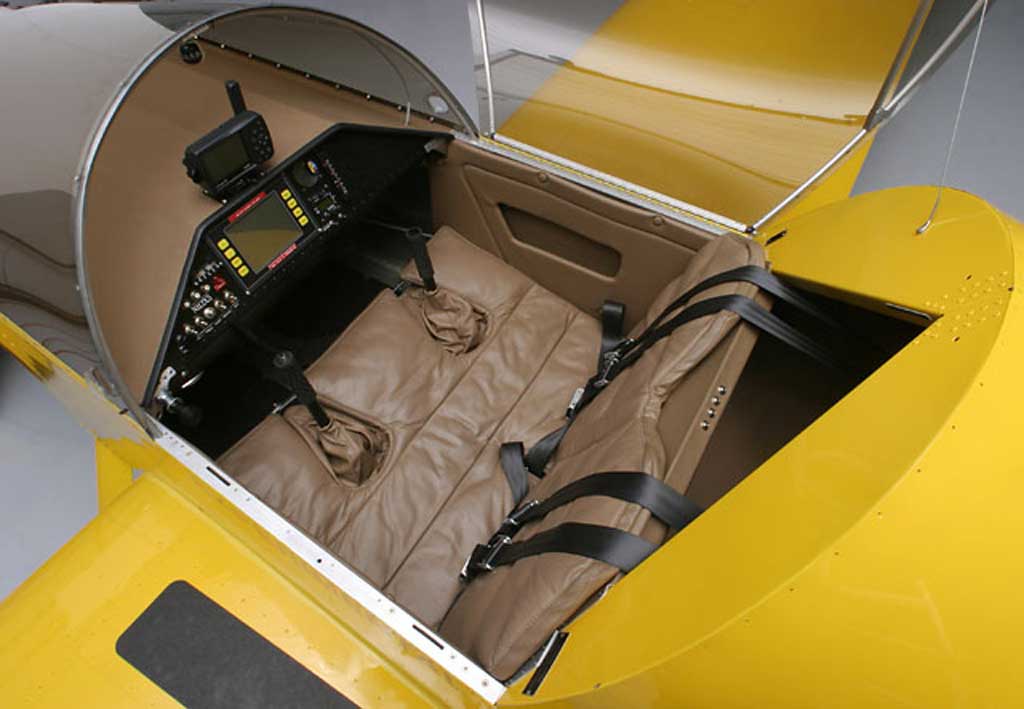

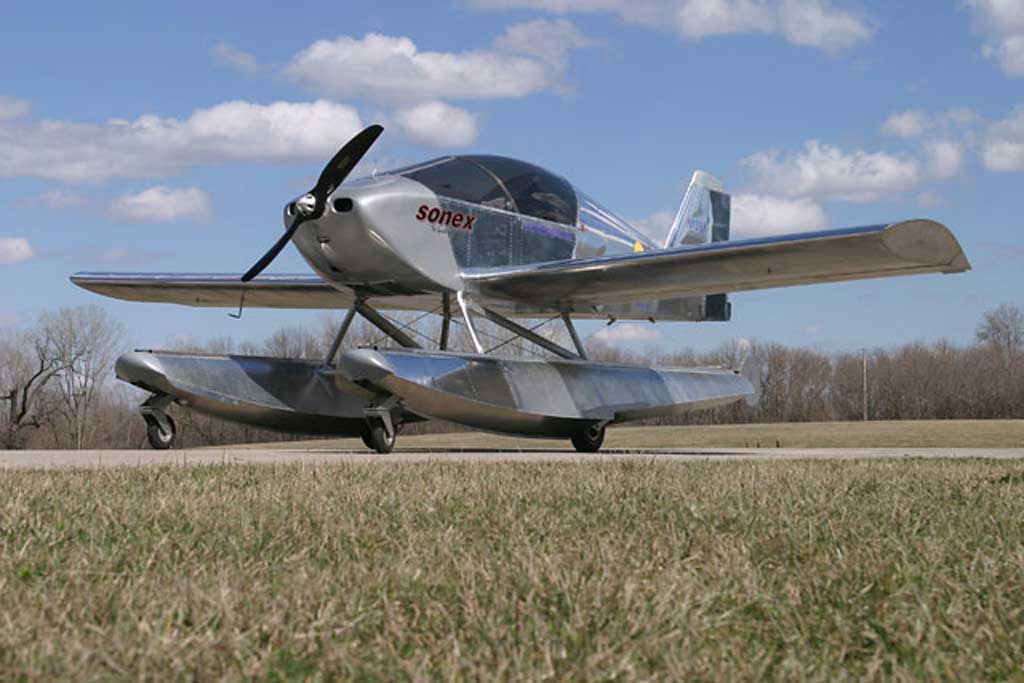

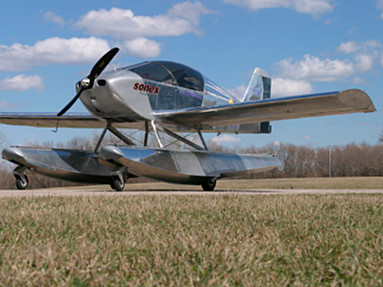

The photos display the Sonex with tri-cycle landing gear, floats and the view of the cockpit.

Sonex Base airframe kit for sale for $15,495.00

Specifications

MTOW:
992 lbs (450 kg)
Stall speed:
35 kts (40 mph) (65 kph)
Cruise speed:
113 kts (130 mph) (209 kph)
VNE:
171 kts (197 mph) (317 kph)
Climb:
1000 ft/min (5.1 m/s)
Take-off distance:
328 ft (100 m)
Landing distance:
492 ft (150 m)
Engine:
Rotax 912
For sale for: USD 15,495 / EUR 13,170

PHOTOS

Sonex Aircraft - Photo #2
Sonex Aircraft - Photo #3
