Sky-Waker II

by Sky-Waker
5
3

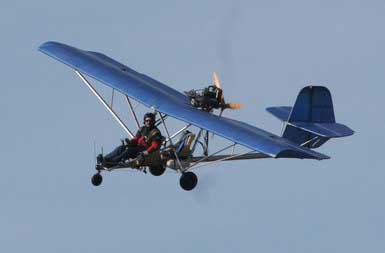

Sky-Waker II - Photo #1

The two-seat Sky-Walker Sky-Walker 1+1 was popular as an ultralight training aircraft. The airframe exists out of an aluminium-tube construction. The plane is constructed out of alu-tube covered with sailcloth.

As powersource the Sky-Walker 1+1 had a four cylinder, horizontal opposed air-cooled Limbach L 1700 EA engine. Motorgliders en ultralight aeroplanes frequently used the Limbach engines. The L 1700 EA was a perfect engine for the ultralight Skywalker with a continuo 56 HP (maximum 60 HP) and a weight of only 73 kg. The dated Limbach engine of the PH-1U9 is replaced by a Rotax 462 UL CB.

Text from: http://avia-dejavu.net/photo%20PH-1U9.htm

Specifications

Empty weight:
150 lbs (68 kg)
MTOW:
350 lbs (159 kg)
Stall speed:
32 kts (37 mph) (59 kph)
Cruise speed:
43 kts (49 mph) (80 kph)
VNE:
54 kts (62 mph) (100 kph)
Climb:
984 ft/min (5 m/s)
Take-off distance:
328 ft (100 m)
Landing distance:
492 ft (150 m)
Engine:
Rotax 503
Fuel consumption:
3 GPH (11.4 LPH)
