SD-1 Minisport amateur built aircraft

by Spacek
3.7
103

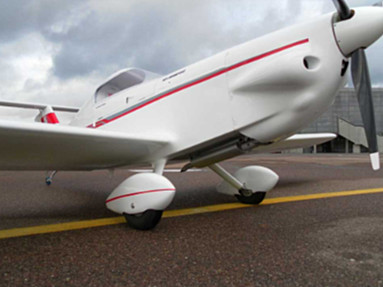

SD-1 Minisport amateur built aircraft - Photo #1

Note: If you like the SD1 Minisport, check out the B612, a single seat European ultralight with retractable gear!
---------------------

The SD-1 is made mostly of wood and is a homebuilt single seat ultralight or LSA (light sport aircraft) depending on regional regulations.

The Spacek SD-1 Minisport is designed and produced by Spacek s.r.o. in the Czech Republic. Several options are avaialable if you wish to own an SD-1 Minisport. Choose between plans, kit or a ready to fly airplane.

SD-1 PLANS
Sold by SPACEK "Important notice: the main wing, elevator and fin spars are not included in drawings. These parts are made of vacum bagging technology and due to this are delivered in basic kit." Source: sdplanes.com

SD-1 KITS
- Quick build kit: can be finished in 100 -300 hrs
- Airframe kit 51%: construction time 400 - 700 hrs
- Basic kit: can be finished in about 800-1200 hrs

SD-1 RTF (Ready To Fly) AIRPLANE
In basic version with Briggs&Stratton Vanguard (24 HP) engine, wood propeller, basic instruments, without rescue system.

Other engines in offer: Hirth F-33 AS (28 HP), Hirth F-23 AS (50HP), Verner JCV-360.

The SD-1 is available in different versions:

- SD-1 TD: taildragger
- SD-1 TG: tricycle gear
- SD-1 TD XL: taildragger version for taller pilots
- SD-1 TG XL: tricycle gear version for taller pilots

Don't forget to visit the SDPlanes discussion groups, Spacek's and Skycraft Airplanes (the US dealer for SD-1).

Editors note: Interesting article about the SD-1 Minisport (N123SD) crashSD-1 Minisport (N123SD) crash.

Specifications

Empty weight:
287 lbs (130 kg)
MTOW:
529 lbs (240 kg)
Stall speed:
35 kts (40 mph) (65 kph)
Cruise speed:
92 kts (106 mph) (170 kph)
VNE:
110 kts (127 mph) (204 kph)
Climb:
787 ft/min (4 m/s)
Take-off distance:
820 ft (250 m)
Landing distance:
984 ft (300 m)
Engine:
Trabant 30 HP, Hirth F-33 or 23, 2702, B&S 22 HP
Fuel consumption:
2 GPH (7.6 LPH)
For sale for: USD 13,995 / EUR 12,875

Watch 20 Videos about the SD-1 Minisport amateur built aircraft

PHOTOS

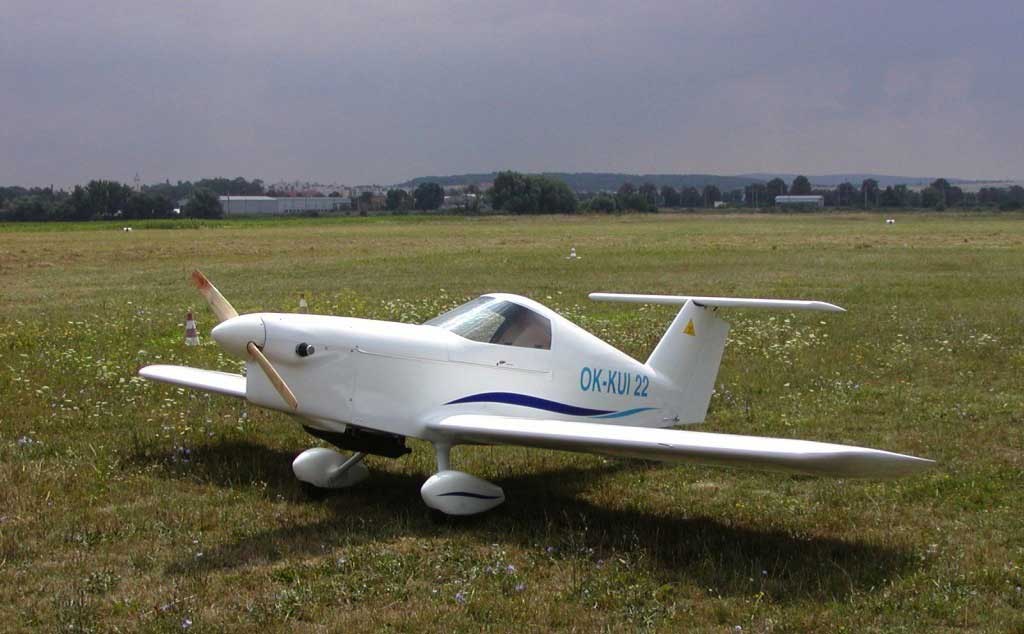

SD-1 Minisport amateur built aircraft - Photo #2

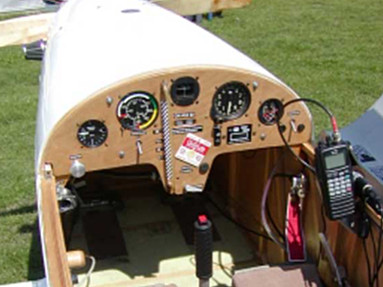

SD-1 Minisport amateur built aircraft - Photo #3
