Savannah

by I.C.P
3
13

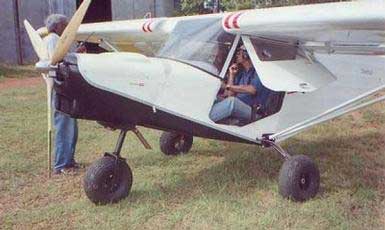

Savannah - Photo #1

The Savannah is an ultralight STOL aircraft (short takeoff and landing) with two side-by-side seats, single high wing, tricycle landing gear and full metal (alluminium) construction.

It shares the same structure of the BINGO!, differing just in some minor details, the engines mounted and the equipment.

Photo From: http://www.icp-avio.com/index.htm

Specifications

Empty weight:
600 lbs (272 kg)
MTOW:
992 lbs (450 kg)
Stall speed:
24 kts (28 mph) (44 kph)
Cruise speed:
76 kts (87 mph) (141 kph)
VNE:
86 kts (99 mph) (159 kph)
Climb:
984 ft/min (5 m/s)
Glide ratio:
12
Take-off distance:
328 ft (100 m)
Landing distance:
443 ft (135 m)
Engine:
Rotax 912, 912 S or 914
