Samba XXL

by Urban Air s.r.o.
4
4

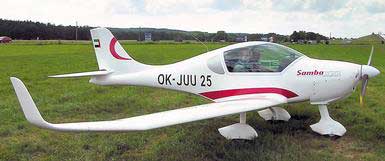

Samba XXL - Photo #1

The Samba XXL is based on successful plane UFM-10 Samba. Excellent flight characteristics were preserved while the space for pilots was extended. That is why Samba XXL is ideal for travelling, training and towing sail planes.

SAMBA XXL - brief technical description:

The ultra-light plane Samba XXL is a double-seat, single-engine, self-carrying low-wing aeroplane with crew members sitting one next to each other. It is all-composite. The fuselage is made mainly of carbon laminate with local sandwich construction. The wing is of sandwich construction while the flanges are of carbon rowing.

The wing is equipped with a lifting flap with a slot. Positions of electrically adjustable flaps are 20° for take-off and 45° for land. The tail surfaces are of classic layout. The carriage is three-wheel with controlled front wheel and braked main wheels.

The main carriage legs consist of a laminate spring. Integrated fuel tanks (2 x 50 litres) are located in the wing leading edge.

The plane may be equipped with a towing device for sail planes towing with maximal climbing weight of 650 kg.

The Samba XXL may be equipped with removable wing extensions.

Specifications

Empty weight:
584 lbs (265 kg)
MTOW:
1041 lbs (472 kg)
Stall speed:
35 kts (40 mph) (65 kph)
Cruise speed:
119 kts (137 mph) (220 kph)
VNE:
146 kts (168 mph) (270 kph)
Climb:
1476 ft/min (7.5 m/s)
Glide ratio:
18
Take-off distance:
492 ft (150 m)
Landing distance:
656 ft (200 m)
Engine:
Rotax 912, Rotax 912S, Jabiru 2200, Jabiru 3300
Fuel consumption:
2 GPH (7.6 LPH)
For sale for: USD 64,325 / EUR 54,676
