Mistral

by Aviasud Engineering
4.0
4

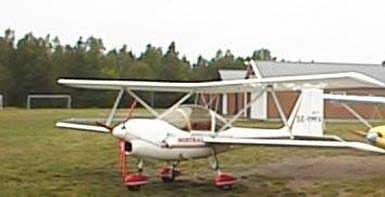

Mistral - Photo #1

The Aviasud Mistral was designed by two Belgian engineers, Francois Goethals and Bernard d'Otreppe. The prototype first flew in May 1985, and the aircraft entered production with AviaSud engineering in Fréjus, with the first production model having its maiden flight in February 1986. Aviasud has built more than 200 Mistrals, it has also been built by Ultraleger Industria Aeronáutica Ltda in Brasil.

The Mistral is a biplane of mixed wooden and composite construction, with forward swept wings, with the all-moving lower wings used as large ailerons, and a conventional, all-moving tailplane. It has a fixed tricycle landing gear and a nose-mounted Rotax piston engine. The Mistral has an enclosed cockpit with two side-by-side seats forward of the wings.

On May 4, 1987, an Aviasud Mistral was flown to the geographic North Pole by Nicolas Hulot, a world first for this type of aircraft.

Source: wikipedia.org

Data from POH for SE-YMV

Specifications

Empty weight:
474 lbs (215 kg)
MTOW:
860 lbs (390 kg)
Stall speed:
35 kts (40 mph) (65 kph)
Cruise speed:
72 kts (83 mph) (133 kph)
VNE:
89 kts (102 mph) (165 kph)
Climb:
758 ft/min (3.9 m/s)
Glide ratio:
10.8
Take-off distance:
623 ft (190 m)
Landing distance:
1099 ft (335 m)
Engine:
Rotax 582
Fuel consumption:
4 GPH (15.1 LPH)

Watch 1 Video about the Mistral

More by Aviasud Engineering

  • Albatros AE209

    Albatros AE209

    Stall speed:
    35 kts (40 mph) (65 kph)
    Cruise speed:
    67 kts (77 mph) (124 kph)
    Empty weight:
    507 lbs (230 kg)
    MTOW:
    992 lbs (450 kg)

    More information!
