Legend Cub AL3C-100

by American Legend Aircraft Company
4.0
3
Legend Cub AL3C-100 - Photo #1

Legend Cub - Just For The Fun of It

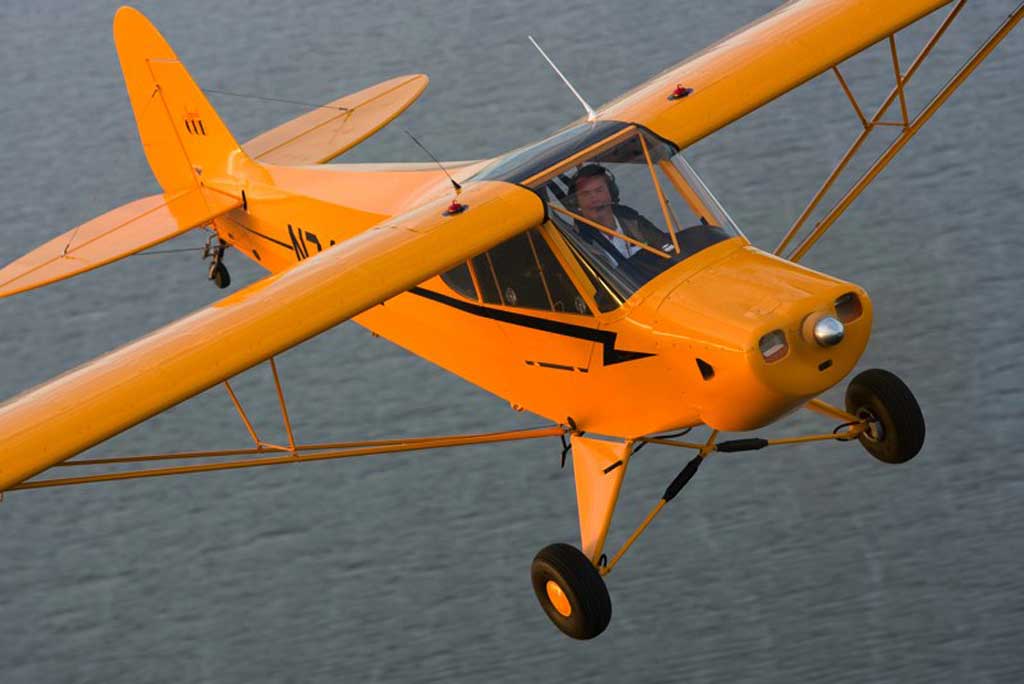

The Legend Cub continues to be the most coveted American manufactured light-sport aircraft. It is a modern legend possessing the right blend of flyboy fun. Those who have flown a Legend Cub consider it to the most gratifying recreational aircraft in the skies today. Today's Legend Cub is an all-new factory-built aircraft, designed in the spirit of the legendary Piper J-3, PA-11, and PA-18 Super Cubs. Combining the best from the past with a wish list of modern enhancements, American Legend Aircraft Company has engineered in all of the latest safety options and operator comforts.

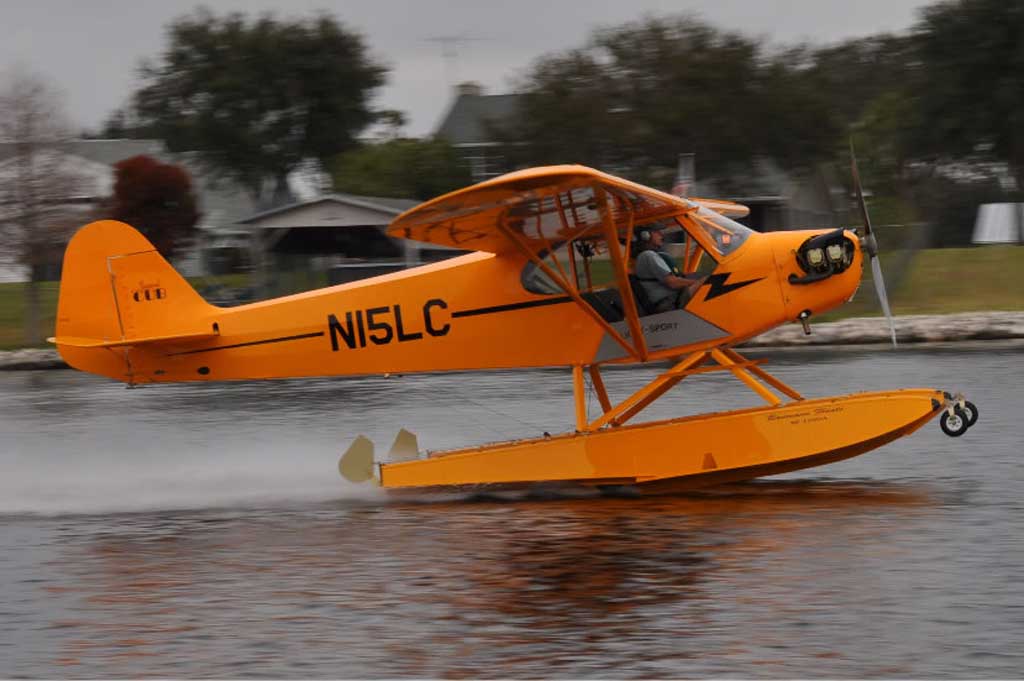

Features unique to the Legend Cub include both right and left clamshell doors providing a more open cockpit feel and allowing float models to dock on either side. Two 12-gallon wing tanks provide increased range, in addition to an improved center-of-gravity that permits solo operation from either seat. An electrical system enables safe, reliable engine starting and gives pilots the option of a well-equipped panel including glass displays, radios and the latest in electronics. A three inch wider cabin improves comfort and enhances safety.

Legend Cub Closed Cowl, PA-11 Style

The closed cowl Legend Cub has a PA-11 style pressure cowl with the classic O-200 engine. The Continental Motors O-200 engine delivers 100 horsepower and resonates the authentic sound of period Cubs. Standard equipment includes: classic wood prop, traditional yellow paint with black lightning bolt, vinyl seats with cloth inserts, basic panel (altimeter, airspeed, inclinometer, tachometer, oil pressure, oil temperature, voltmeter), 406 MHz ELT, 6.00 x 6 tires.

Open Cowl, J-3 Style

The open cowl Legend Cub has a classic J3 Cub look with exposed cylinders and "eyebrow" baffles. The Continental Motors O-200 engine delivers 100 horsepower and resonates the authentic sound of period Cubs. Standard equipment includes: classic wood prop, traditional yellow paint with black lightning bolt, vinyl seats with cloth inserts, basic panel (altimeter, airspeed, inclinometer, tachometer, oil pressure, oil temperature, voltmeter), 406 MHz ELT, 6.00 x 6 tires.

Source: legend.aero

Editors note: Please visit legend.aero and check out the other great Cub versions they manufacture!

Specifications

Empty weight:
850 lbs (386 kg)
MTOW:
1323 lbs (600 kg)
Stall speed:
30 kts (35 mph) (56 kph)
Cruise speed:
83 kts (96 mph) (154 kph)
VNE:
96 kts (110 mph) (178 kph)
Climb:
500 ft/min (2.5 m/s)
Take-off distance:
350 ft (107 m)
Landing distance:
350 ft (107 m)
Engine:
Continental O-200, 100 Hp

Watch 1 Video about the Legend Cub AL3C-100

PHOTOS

Legend Cub AL3C-100 - Photo #2
Legend Cub AL3C-100 - Photo #3
