IV

by Avid Aircraft Inc.
4.0
2

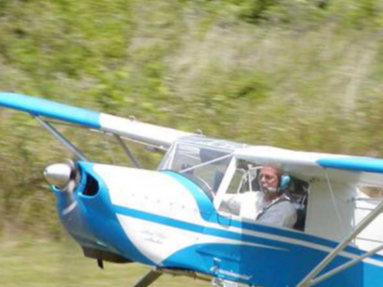

IV - Photo #1

MkIV had redesigned Vagabond style cowling, front mounted radiators, fiberglass wing tanks, Matco hydraulic disk brakes and wheels, Maule tailwheel with 11/2" tailspring, offset was taken out of fin, offset front mounting taken out of stabiliser! Steel tubing dorsal, belly, and side stringers. External Baggage Locker. Ser #'s 900D to around 1550D.

Source: avidflyeraircraft.com

Editors note: Different literature from Avid gives different data for the same aircraft. None is dated so it's hard to determine what's current and what's outdated.

Specifications

Empty weight:
990 lbs (449 kg)
MTOW:
1750 lbs (794 kg)
Stall speed:
31 kts (36 mph) (57 kph)
Cruise speed:
113 kts (130 mph) (209 kph)
VNE:
156 kts (180 mph) (289 kph)
Climb:
1800 ft/min (9.1 m/s)
Take-off distance:
225 ft (69 m)
Landing distance:
200 ft (61 m)
Engine:
Jabiru 2200
Fuel consumption:
4 GPH (15.1 LPH)

PHOTOS

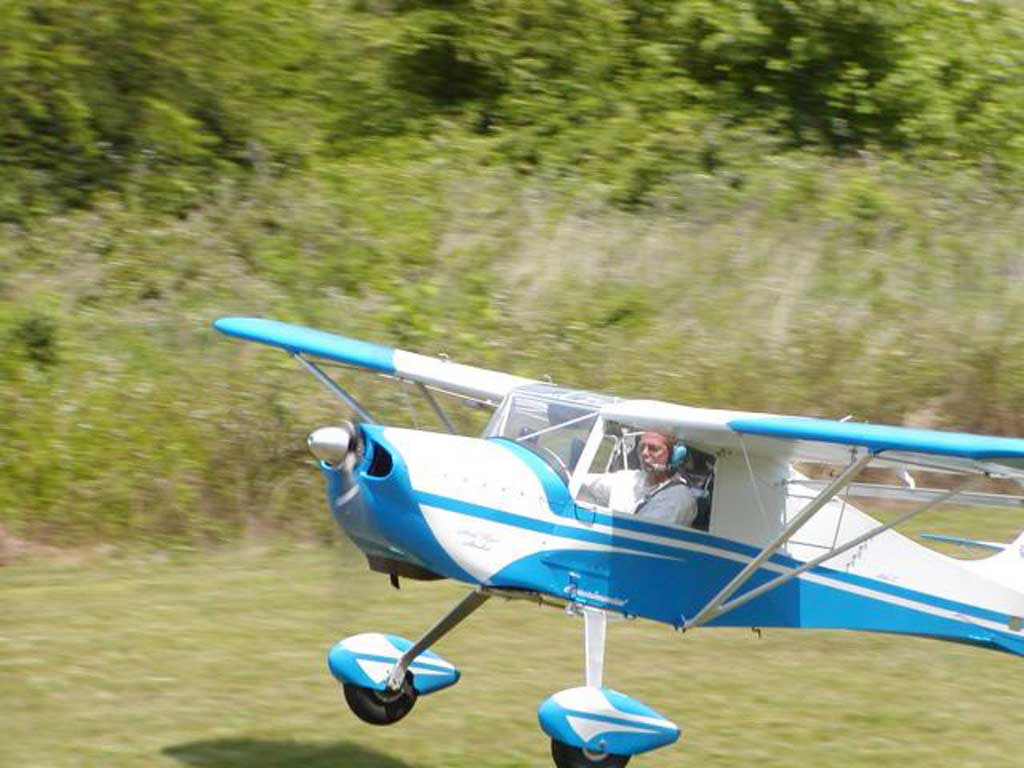

IV - Photo #2
