Hi-MAX 1700R

by Team Mini-Max LLC
3.3
32

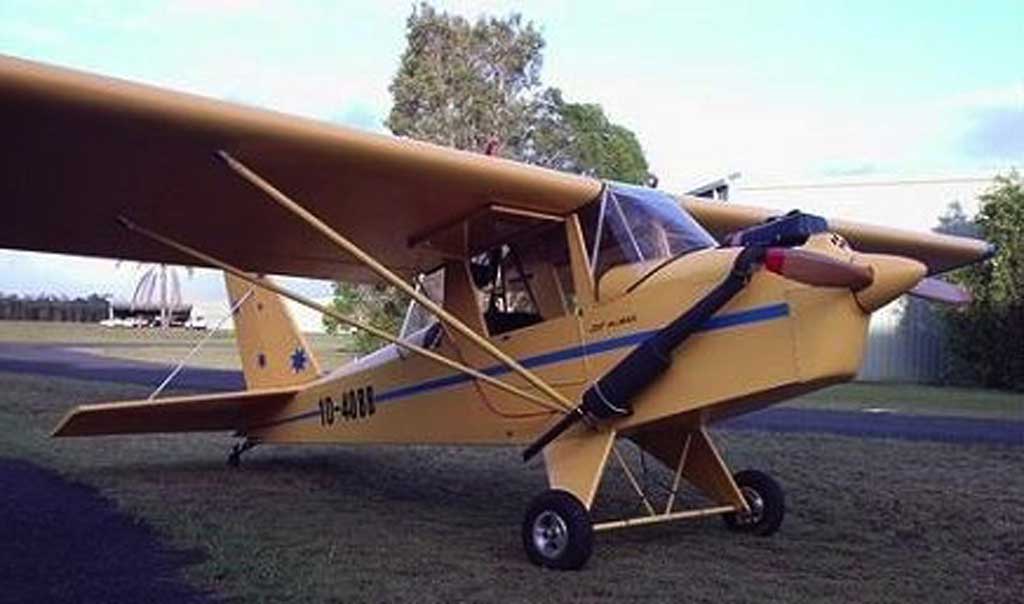

Hi-MAX 1700R - Photo #1

The same basic airframe as the 1100R, but for pilots who prefer high-wing aircraft with an enclosed cabin. Powered by a 2-cylinder 2-cycle engine. Experimental Amateur-Built catagory. Available as plans-only, sub-kits and complete standard kit.

Here's a sure formula for a winning airplane. Take one or more parts from an already proven design, add a few parts for creature comfort and/or customer preferences, mix together with a solid team and you have a sure-fire winner!

A wrap-around windshield of Lexan makes for excellent visibility and comfortable flying. Optional windows are removable for open-air flying in the summer. For power we recommend a Rotax 447, or any engine up to 45 hp.

Wood was chosen as the basic building material. It is easy to work with, dependable in its strength characteristics, and is not bothered by the vibrations associated with 2-cycle engines.

Construction techniques are of the old-fashioned, tried and true wood truss and plywood gusset method. It is very simple, and builds quickly.

If you have ever built a balsa-wood model airplane, you have the experience required to build this full-scale model! While construction time will vary from builder to builder, approximately 300 hours is the average.

The Hi-MAX design is available in the configuration shown below. Click on the link below to see specifications and kit prices for the Hi-Max 1700R.

1700R Hi-MAX Standard equipment:

High wing  Enclosed cabin Truss landing gear standard; Optional spring steel landing gear Easily removable wings One 6 gallon wing tank (optional 2nd wing tank) Electronic elevator trim Outstanding short field performance

Free Plans!Free Plans!

Specifications

Empty weight:
328 lbs (149 kg)
MTOW:
560 lbs (254 kg)
Stall speed:
24 kts (28 mph) (44 kph)
Cruise speed:
61 kts (70 mph) (113 kph)
VNE:
87 kts (100 mph) (161 kph)
Climb:
900 ft/min (4.6 m/s)
Take-off distance:
100 ft (30 m)
Landing distance:
210 ft (64 m)
Engine:
Rotax 447
Fuel consumption:
4 GPH (15.1 LPH)
For sale for: USD 5,795 / EUR 4,925
