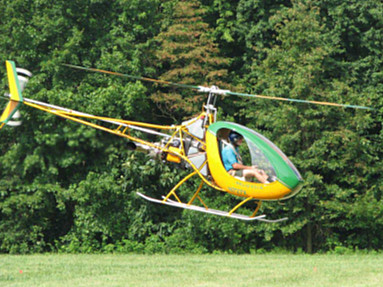

Helicycle - Photo #1

The Eagle Helicycle is a single seat small kit-built helicopter powered by a modified T62-T32 150SHP turbine engine.

The Helicycle is a small personal helicopter that is sold as a kit for anyone who wants to build their own flying turbine helicopter. It has features such as a fully harmonized rotor, elastomeric thrust bearings (very low twice-per-revolution vibration), a modulated collective pitch system and electronic throttle control (governor).

The feel of the flight controls are modeled after the Robinson R22 so that autorotations and quick stops are performed in a similarly in both helicopters, thus making it it easy for new pilots transition to flying their Helicycle with little adjustments.

Helicycle general characteristics

Crew: one
Range with reserve:160 miles
Length: 20 ft 10 in (6.35 m)
Rotor diameter: 19 ft 10 in (6.05 m)
Height: 7 ft 4 in (2.23 m)
Disc area: 308 ft² (28.6 m²)
Hover IGE: 9,500 ft
Service ceiling: 11,000 ft


Cost of Operation: (In cost per air mile)

Fuel: 0.11
Routine maintenance at 100 hour intervals: 0.03
Engine maintenance at 250 hour intervals: 0.03
Engine replacement: 0.11
Airframe retirement time parts reserve fund: 0.09
TOTAL: 0.37 per mile

Source: helicycle.com Photos: helicycle.com

Specifications

Empty weight:
500 lbs (227 kg)
MTOW:
850 lbs (386 kg)
Cruise speed:
83 kts (96 mph) (154 kph)
VNE:
96 kts (110 mph) (178 kph)
Climb:
900 ft/min (4.6 m/s)
Engine:
Modified Solar T62 turbine (160 derated to 90 hp)
For sale for: USD 38,500 / EUR 35,420

Watch 20 Videos about the Helicycle

PHOTOS

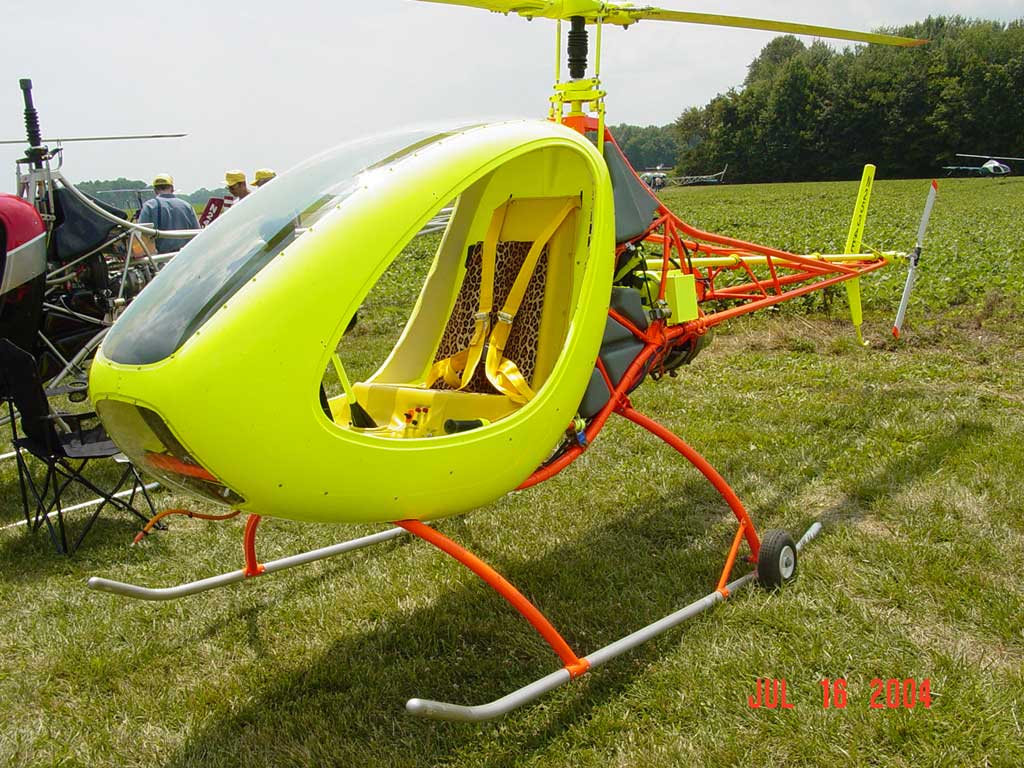

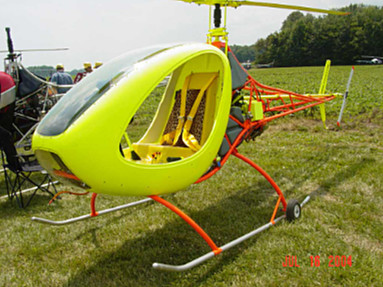

Helicycle - Photo #2
Helicycle - Photo #3
