G1sa GENESIS Gyrocopter

by Aviomania Aircraft
4
18

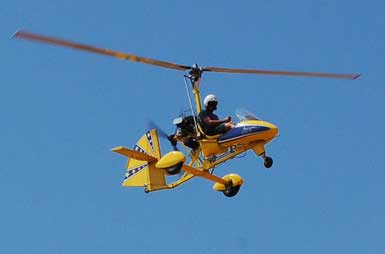

G1sa GENESIS Gyrocopter - Photo #1

Single seat gyrocopter

Max pilot weight (Rotax 503) with full fuel: 125 Kg (275 lbs) Rotor diameter (depending on pilot weight & airfield elevation) 23-25 ft. Propeller Diameter 60" -64", Fuel Capacity 26 Ltrs (7 Gal) Max Endurance (Rotax 503) 1 Hour 45 min

The kits have the option of single main undercarriage tube or triangulated undercarriage with suspension. Single composite undercarriage with suspension (direct replacement of single main undercarriage) will be available at a later Date. Bigger Engines are also available.

The Kits comes with the tubes & plates pre-drilled and cut to size. Some easy cutting and drilling is left to the builder. The kit can be assembled with smaller diameter bolts, then drilled through with the correct diameter. This produces a perfectly drilled frame and minimizes the chances of making a mistake. The Quick built option allows for minimum work to be done and still be within the 51% rule.

Text from: www.aviomania.com

Editors note, have a look at the video below! Some wild flying with this gyrocopter!

Specifications

Empty weight:
309 lbs (140 kg)
MTOW:
661 lbs (300 kg)
Stall speed:
16 kts (18 mph) (30 kph)
Cruise speed:
52 kts (60 mph) (96 kph)
VNE:
70 kts (81 mph) (130 kph)
Climb:
800 ft/min (4.1 m/s)
Take-off distance:
427 ft (130 m)
Landing distance:
66 ft (20 m)
Engine:
Rotax 503 or (52 - 65 HP)
For sale for: USD 18,011 / EUR 15,309
