Dynali H3 Sport

by Dynali
5.0
1

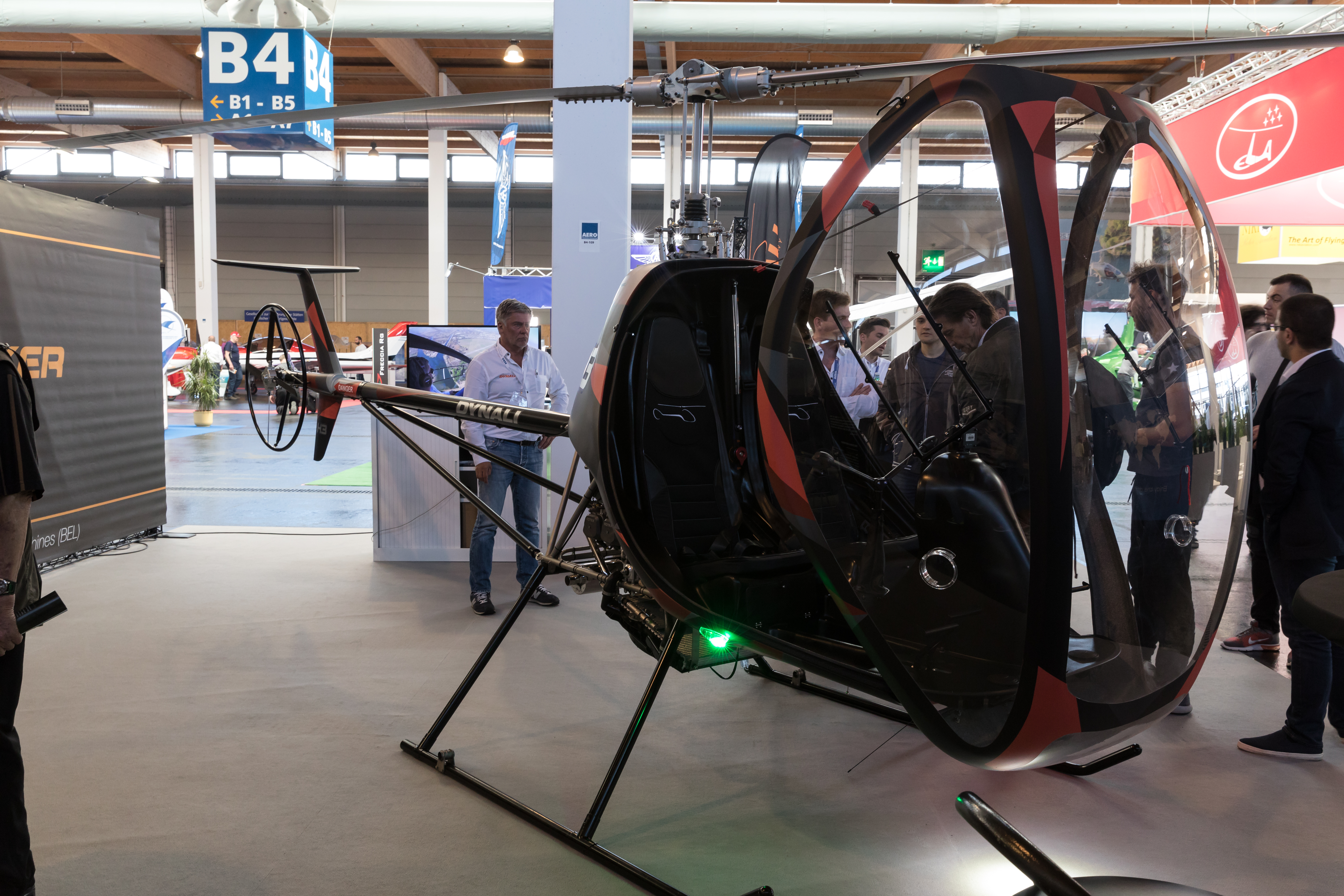

Dynali H3 Sport - Photo #1

Introducing the Dynali H3 Sport, designed for flight training, utility tasks, and personal adventures. This microlight helicopter is engineered to meet the stringent requirements of the European Class 6 microlight helicopter regulations, specifically adhering to the standards set by the French Class 6 Microlight Category, with a maximum gross weight of 450 kg (992 lb).

Equipped with a robust yet efficient design, the H3 Sport features a single main rotor and tail rotor configuration. Its enclosed cockpit, boasting a sleek bubble canopy, comfortably accommodates two occupants in a side-by-side layout. The helicopteris equipped with reliable skid landing gear, ensuring stable landings in various conditions.

Under the hood, the H3 is powered by a four-cylinder Rotax 912 ULS-I-BB boxer engine, delivering 135 hp (100 kW) of smooth, responsive power.

Flexibility is key with the H3 Sport, as its gross weight can vary depending on the installed power and national certification requirements. With the Rotax 912ULS engine, the aircraft boasts a gross weight of 500 kg (1,102 lb), while the Rotax 912ULS-1 variant increases it to 550 kg (1,213 lb), and the Rotax 914 turbocharged version elevates it to 600 kg (1,323 lb).

Built with a durable fuselage frame crafted from welded stainless steel tubing, the H3 ensures structural integrity and longevity. Its two-bladed rotor, with a diameter of 7.14 m (23.4 ft) and a chord of 18.5 cm (7.3 in), provides exceptional lift and maneuverability.

Even with its robust construction, the H3 maintains impressive efficiency. With the Rotax 914 engine, the aircraft boasts a typical empty weight of 290 kg (639 lb) and a generous useful load of 310 kg (683 lb). Pilots can enjoy ample payload capacity, with enough space for a pilot, passenger, and baggage, even with a full fuel capacity of 60 liters (13 imp gal; 16 US gal).

Experience the freedom of flight with the H3 microlight helicopter, where reliability, performance, and versatility converge to elevate your aerial adventures to new heights.

Key features of the Dynali H3 Sport helicopter

  • Affordable Excellence: Operating costs as low as €100 per hour.
  • Fuel Efficiency: Consumption rate of 22 liters per hour.
  • Safety First: Engineered with wide safety margins.
  • Comfortable Flight: Spacious cabin and responsive piloting.
  • Reliability Guaranteed: Designed for peace of mind.

General characteristics

  • Crew: one
  • Capacity: one passenger
  • Fuel capacity: 60 litres (13 imp gal; 16 US gal)
  • Main rotor diameter: 7.14 m (23 ft 5 in)
  • Main rotor area: 40 m2 (430 sq ft)
  • Endurance: 3 hours
  • Service ceiling: 3,000 m (10,000 ft)
  • Disk loading: 12.5 kg/m2 (2.6 lb/sq ft)

Price: €179,950 / 195,470 USD

Editors note: Check out the other small personal helicopters!

Photo: Matti Blume

Specifications

Empty weight:
628 lbs (285 kg)
MTOW:
1102 lbs (500 kg)
Cruise speed:
70 kts (81 mph) (130 kph)
VNE:
84 kts (97 mph) (156 kph)
Climb:
1000 ft/min (5.1 m/s)
Engine:
Rotax 912 ULS-I-BB / 135 hp
For sale for: USD 195,470 / EUR 179,832
