Da-24 MagicONE

by Albaviation
4.8
5

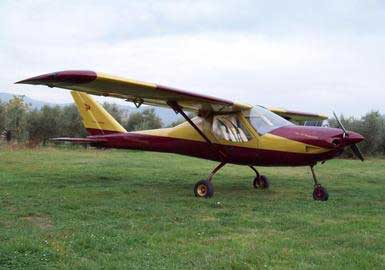

Da-24 MagicONE - Photo #1

The Da-24 is a traditional aircraft in the forms and in the structures, while is being inclined in the aerodynamics, with a fuselage to recovery of pressure and low coefficient of aerodynamic resistance. The strong point is the wing, it has varying laminar profile with plant tapered, and the adoption of an integrated fixed slat in the profile for around 70% of the wing, flower flap and ailerons to high efficiency. All of this allows a low stall speed and a maximum speed notable. Therefore a cruise aircraft, excellent for aerial job.

Specifications

Empty weight:
617 lbs (280 kg)
MTOW:
992 lbs (450 kg)
Stall speed:
27 kts (31 mph) (50 kph)
Cruise speed:
122 kts (140 mph) (226 kph)
VNE:
154 kts (177 mph) (285 kph)
Climb:
1450 ft/min (7.4 m/s)
Take-off distance:
450 ft (137 m)
Landing distance:
500 ft (152 m)
Engine:
Rotax

Watch 1 Video about the Da-24 MagicONE
