CH 7 Kompress Helicopter

by Tecnosoluzioni srl
4.0
29
CH 7 Kompress Helicopter - Photo #1

Type: Small twin seats (tandem) helicopter, double pitch
Cell composition: Truss, Pipes, Carbon fiber cabin, Plexiglass canopy

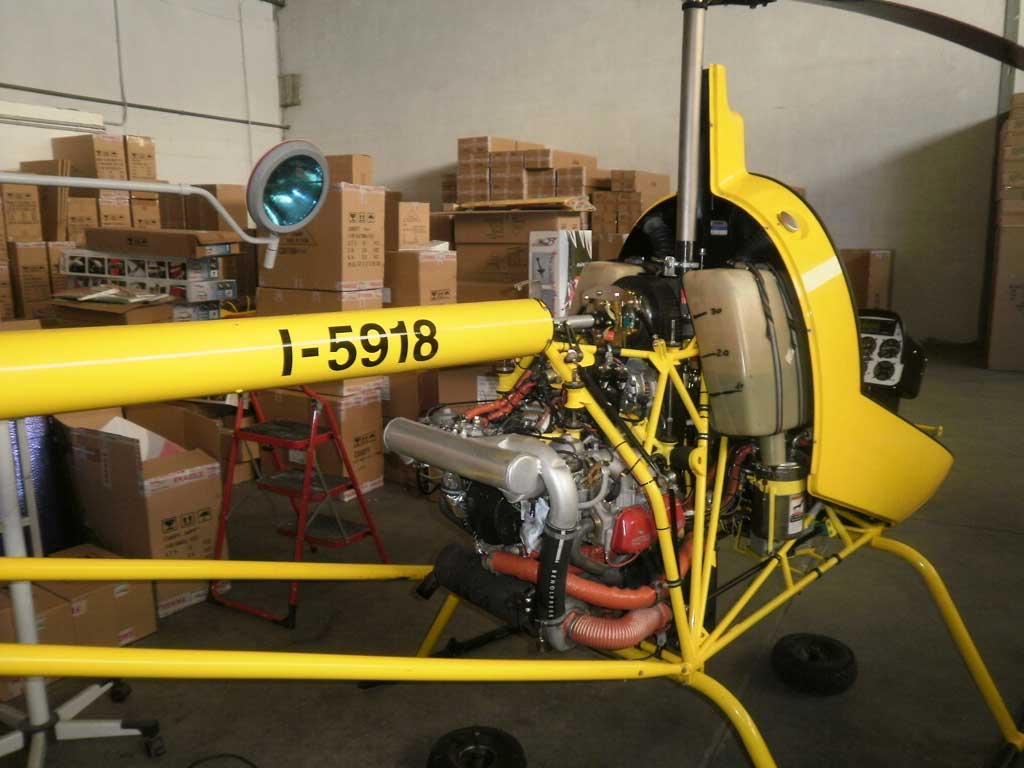

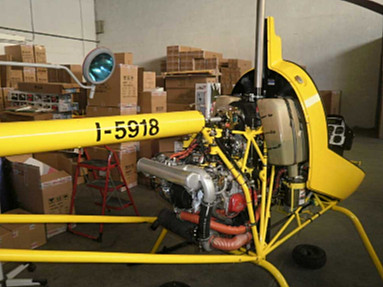

Powerplant: Rotax 914, 4 cylinders, 4 strokes, Turbocharger, Liquid cooling

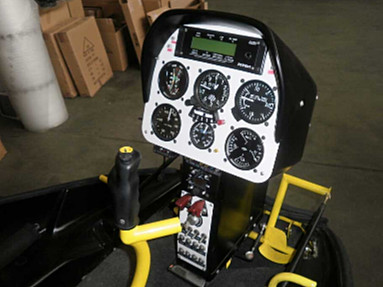

Instrumentation:

  • Anemometer
  • Altimeter
  • Variometer
  • Compass
  • Multiple engine temp. gauges
  • Tachometer motor-rotor, Map.

Electrical system:

  • 2 engine cooling fans
  • 2 petrol electric pumps
  • 2 servo trim
  • Landing gears


Tank capacity: 40 l = 30 kg
Hourly fuel consumption to 75% of the power generated by the motor: 16 l / h = 12 kg / h

Fuel: Avio 100 LL, Gasoline minimum MON83 or RON90 octane Car Super Gasoline or Gasoline lead-free

Payload: 205 kg

Main rotor diameter: 6.20 m (20.30 ft) 2 blades
Angular speed – 104 % : 173 m/sec (550 fps)

Tail rotor diameter: 1.02 m (3.34 ft) 2 blades
Angular speed - 104% : 163 m/sec (535 fps)

Fuel: Avio 100 LL

Gasoline minimum MON83 or RON90 octane, Car Super Gasoline or Gasoline lead-free
Frame made of steel 4130-tight pressure of 2 bar of nitrogen gas
The inspection must be carried out by the manufacturer in Italy
Registration number by AeCI: I-5918
The helicopter is sold as assembly kit or is assembled by the manufacturer for a higher price.
I-5918 has been assembled by the builder.

Specifications

Empty weight:
540 lbs (245 kg)
MTOW:
992 lbs (450 kg)
VNE:
113 kts (130 mph) (209 kph)
Engine:
Rotax 914 (115HP) - Engine dry weight: 74,7 kg
For sale for: USD 57,900 / EUR 49,215
