Brumby 600

by Brumby Aircraft
3.5
4

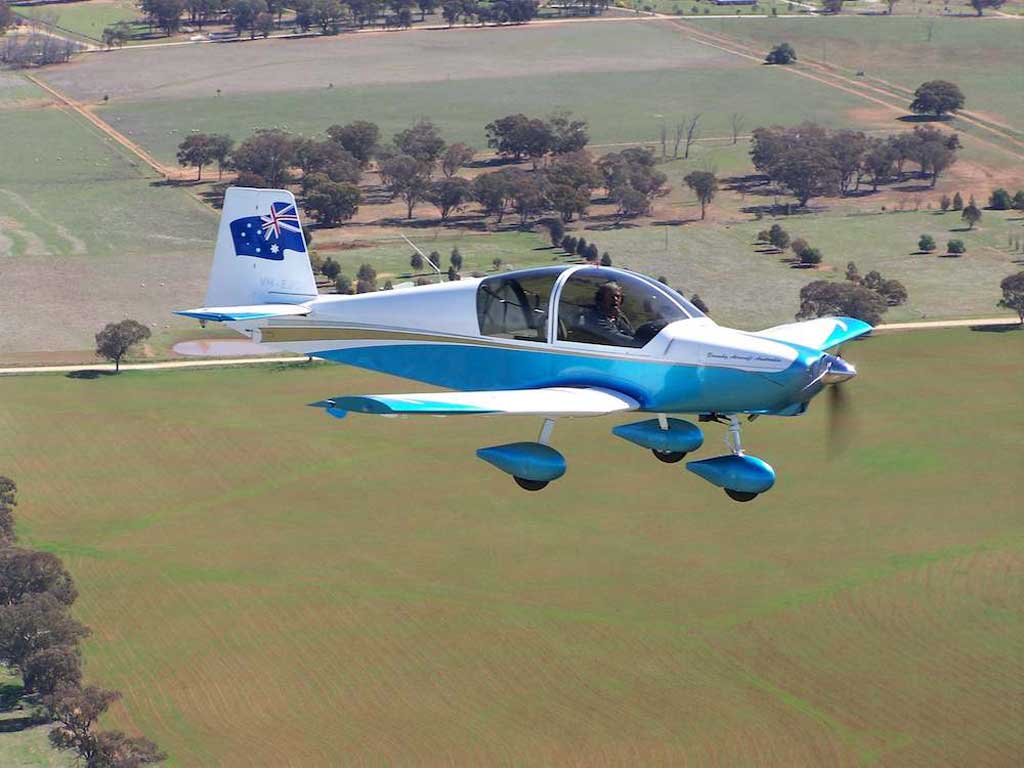

Brumby 600 - Photo #1

Features:

  • 2 seat side by side monoplane
  • All metal low wing construction
  • Low operating costs
  • Spacious cabin width
  • Robust - internals are solid rivited, yet still light weight
  • Docile flying characteristics
  • Full dual controls with control stick and toe brakes
  • Electric flaps
  • Steerable nose wheel
  • Elevator trim wheel in centre console
  • Seating is adjustable fore and aft to ensure pilot comfort


Specifications

Wing Span: 28ft
Length of fuselage: 20ft
Wing area: 105 sq ft
Engine options: Jabiru 3300, Rotax 912ULS or Lycoming IO-233
Propeller: 2 blade timber
Fuel capacity: 130lts
Baggage: 6 cu ft behind seat plus large parcel tray ..... Cabin Width: 42.5"
Maximum take off weight: 544kg RAA or 600kg LSA
Empty weight: 330kg
Cruise speed at 75% power: (Rotax 912) 110kts at 18 ltrs per hr or (Jabiru 3300) 115kts at 20 ltrs per hr
Stall speed: 40kts
VNE: 140kts
Climb speed: 70kts
Rate of climb: 1000m
Landing speed: 65kt

Tricycle undercarriage (standard) or tail wheel
Basic VFR panel (standard) or Night VFR panel if required
Forward sliding canopy (standard) or gull wing (similar to Glasair, avalable in a kit only) available.

Source: brumbyaircraft.com.au

Specifications

Empty weight:
750 lbs (340 kg)
MTOW:
1323 lbs (600 kg)
Stall speed:
40 kts (46 mph) (74 kph)
Cruise speed:
115 kts (132 mph) (213 kph)
VNE:
140 kts (161 mph) (259 kph)
Climb:
1000 ft/min (5.1 m/s)
Engine:
Rotax 912, Lycoming 0-233, Jabiru 3300
Fuel consumption:
5 GPH (18.9 LPH)

Watch 1 Video about the Brumby 600
