Bagaliante

by Bagalini
4
17

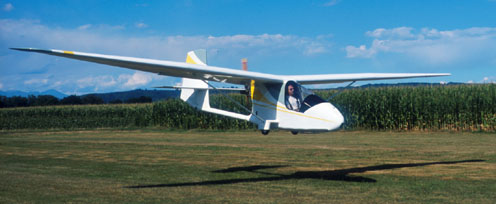

Bagaliante - Photo #1

The Bagalini Bagaliante is an Italian high-wing, strut-braced, single-seat, pusher configuration, conventional landing gear motor glider that was designed by Marino Bagalini and made available as plans for amateur construction



Length: 6 m (21.00 ft) Wingspan: 12.2 m (40 ft 0 in) Airfoil: root: Gottingen 535, tip: NACA 4412 Empty weight: 110 kg (242 lb) Gross weight: 185 kg (407 lb) Fuel capacity: 11 litres (2.9 US gal) Powerplant: 1 × Rotax 277 , 19 kW (26 hp) Propellers: 2-bladed wooden Performance Maximum speed: 87 km/h; 47 kn (54 mph) Cruise speed: 60 km/h; 32 kn (37 mph) Stall speed: 42 km/h; 23 kn (26 mph) Rate of climb: 4.6 m/s (900 ft/min)

Source: wikipedia.org



Specifications

Empty weight:
231 lbs (105 kg)
MTOW:
441 lbs (200 kg)
Stall speed:
22 kts (25 mph) (41 kph)
Cruise speed:
36 kts (41 mph) (67 kph)
VNE:
49 kts (56 mph) (91 kph)
Climb:
984 ft/min (5 m/s)
Take-off distance:
66 ft (20 m)
Landing distance:
164 ft (50 m)
Engine:
rotax 277
Fuel consumption:
1 GPH (3.8 LPH)
For sale for: USD 7,719 / EUR 6,561

PHOTOS

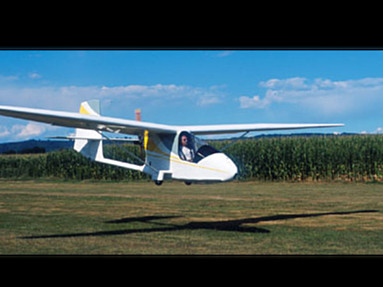

Bagaliante - Photo #2
