Apollo Fox

by Apollo Ultralight Aircraft
3.5
28

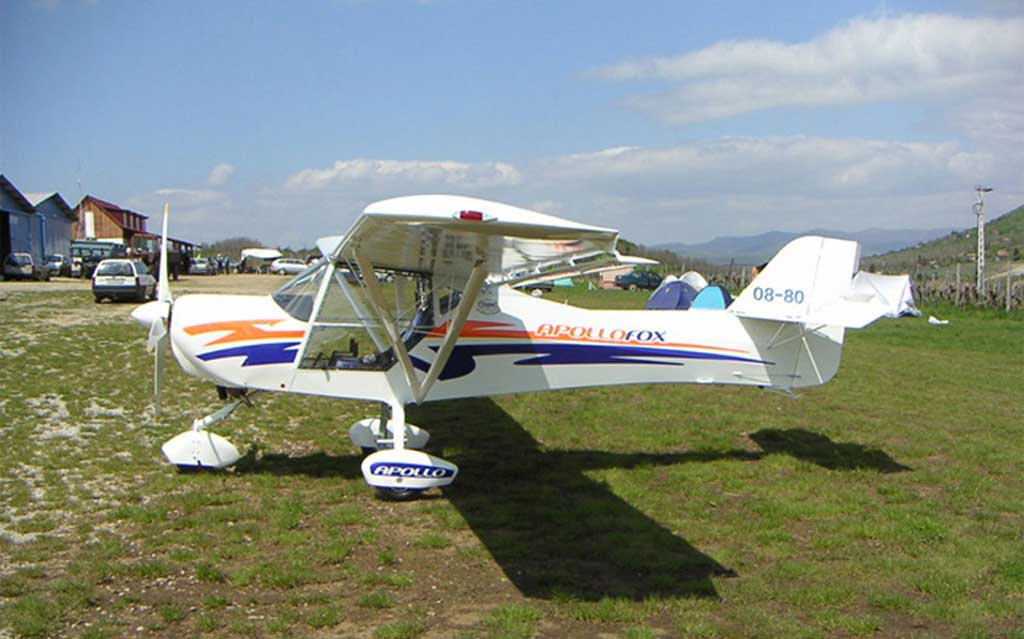

Apollo Fox - Photo #1

The Apollo Fox is built according to the "BCAR" Section S constuction norm. The aircraft has welded steel alloy tube fuselage covered with "ceconite" fabric. The wing are made of aluminium alloy both spars and ribs and then covered with "ceconite". Wing can be folded backwards. One pilot can do it within 10 minutes. The landing gear is aluminium plate sheet system, like on all Cessna. Wheels are equipped with hidraulic disc or mechanic drum brakes. Apollo Fox has very good rudder harmony and very easy to fly and land. Available tail or nose wheel configurations. Engine: Rotax 582 UL Mod 99 (65Hp), 912UL (80 Hp), 912 ULS (100 Hp). Propeller: 2 blades wooden or 3-4 blades plastic, fiberglass, carbon ground or air adjustable propellers.

Technical data

  • Power: 65 - 100 Hp
  • Max take off weight: 450 kg
  • Weight/Hp relation: 5.625 kg/LE
  • Empty weight: 265-285 kg
  • Max payload: 180 kg
  • Wingspan: 9,15 m
  • Wing area: 11,4 m2
  • Lenght: 5,80 m
  • Lenght with folded wings: 6,47 m
  • Total width with folded wings: 2,39 m
  • Height: 1.7 m
  • Fuel capacity: 60 l
  • Stall speed: 64km/h
  • Maximal speed: 200 km/h
  • Cruise speed: 150 km/h
  • Take off lenght: 120 m
  • Landing lenght: 200 m
  • Range: 800 km
  • Max G: +4; -2
  • Max cabin width: 1,1 m

The aircraft has type certificate in Belgium, Sweeden, Hungary, France, Croatia, Romania. In 2003 an APOLLO FOX equipped with a Rotax 912ULS 100 Hp engine flewn from Sármellék, Hungary to Sidney, Australia without ground follow team. There was no technical problem during all fligt. The distance was about 25.000 km over several countries, forests, deserts, seas. The two pilot Mr. Andor Kántás and Mr. Csongor Lathky made a big world record and show the reliability of the Apollo Fox to the world.

Source: halley.hu

Specifications

Empty weight:
604 lbs (274 kg)
MTOW:
992 lbs (450 kg)
Stall speed:
35 kts (40 mph) (65 kph)
Cruise speed:
81 kts (93 mph) (150 kph)
VNE:
97 kts (112 mph) (180 kph)
Take-off distance:
459 ft (140 m)
Landing distance:
656 ft (200 m)
Engine:
Rotax 582, 912, Jabiru 2200

Watch 1 Video about the Apollo Fox

PHOTOS

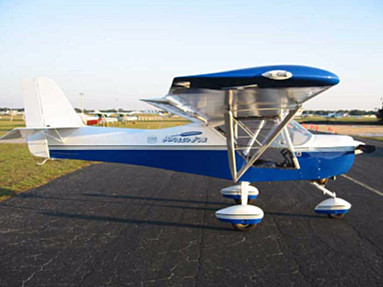

Apollo Fox - Photo #2
Apollo Fox - Photo #3
