Bagaliante Bagalini

Bagaliante
Bagaliante

Rate this aircraft!

4.0/5 rating (1 votes)

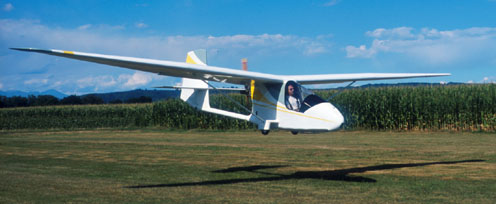

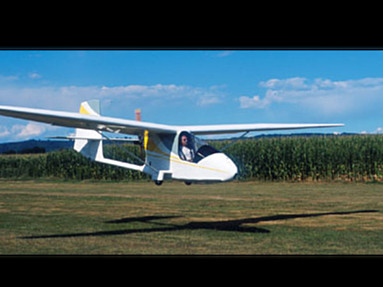

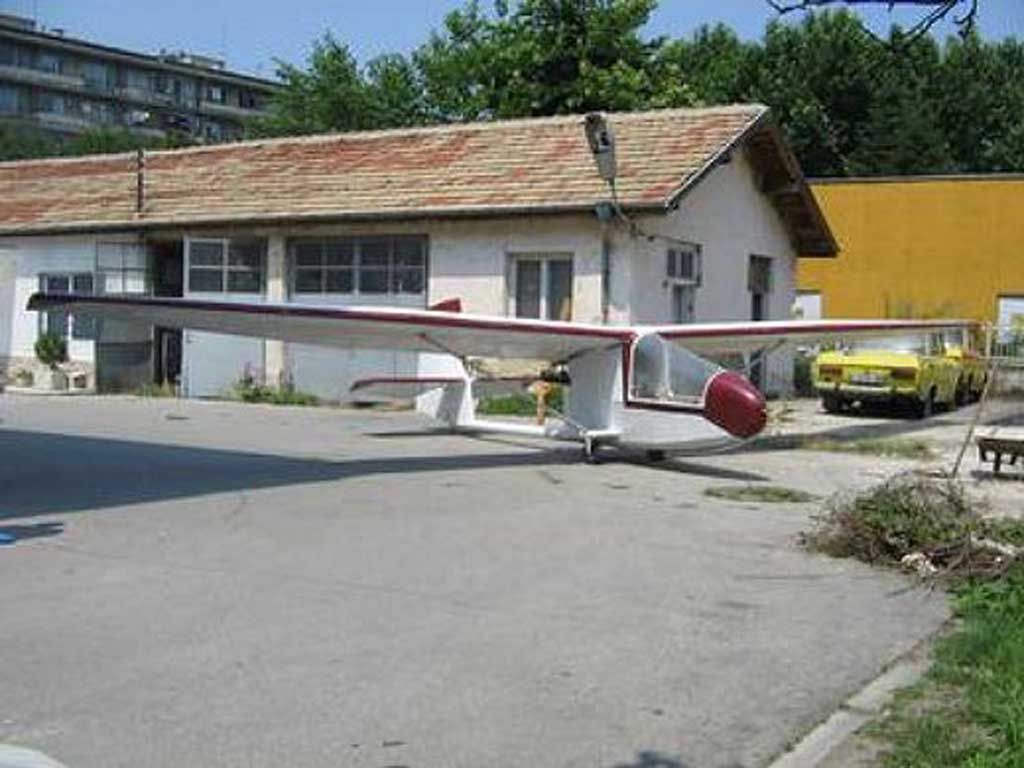

The Bagalini Bagaliante is an Italian high-wing, strut-braced, single-seat, pusher configuration, conventional landing gear motor glider that was designed by Marino Bagalini and made available as plans for amateur construction



  • Length: 6 m (21.00 ft)
  • Wingspan: 12.2 m (40 ft 0 in)
  • Airfoil: root: Gottingen 535, tip: NACA 4412
  • Empty weight: 110 kg (242 lb)
  • Gross weight: 185 kg (407 lb)
  • Fuel capacity: 11 litres (2.9 US gal)
  • Powerplant: 1 × Rotax 277 , 19 kW (26 hp)
  • Propellers: 2-bladed wooden
  • Performance
  • Maximum speed: 87 km/h; 47 kn (54 mph)
  • Cruise speed: 60 km/h; 32 kn (37 mph)
  • Stall speed: 42 km/h; 23 kn (26 mph)
  • Rate of climb: 4.6 m/s (900 ft/min)

Source: wikipedia.org



Specifications

  • Empty weight: 231 lbs
  • MTOW: 441 lbs
  • Stall speed: 22 kts
  • Cruise speed: 36 kts
  • Never exceed speed VNE: 49 kts
  • Climb: 984 ft/min
  • Takeoff distance (50ft obstacle): 66 ft
  • Landing distance (50´ft obstacle): 164 ft
  • Engine: rotax 277
  • Fuel consumption: 1 gph
  • Bagaliante
  • For sale for: 7719 USD
